WDMA + WED #3

New Issue
Open
opened 2025-11-08 01:36:34 +00:00 by Sirherobrine23 · 17 comments
Sirherobrine23 commented 2025-11-08 01:36:34 +00:00
Owner
Copy Link
Copy Source

4d76b59039/sdk/en7529/linux-4.4.115/arch/arm/boot/dts/en7523.dts (L230-L267)

IRQs:

https://sirherobrine23.com.br/tplink_xx230v/gpl_tplink-xx230v/src/commit/4d76b590398d1e510a2a893f6fc4c69bfedb5768/sdk/en7529/linux-4.4.115/arch/arm/boot/dts/en7523.dts#L230-L267 ---- ## IRQs: - https://sirherobrine23.com.br/tplink_xx230v/gpl_tplink-xx230v/src/commit/4d76b590398d1e510a2a893f6fc4c69bfedb5768/sdk/en7529/linux-4.4.115/arch/mips/econet/irq.c#L172-L179 - https://sirherobrine23.com.br/tplink_xx230v/gpl_tplink-xx230v/src/commit/4d76b590398d1e510a2a893f6fc4c69bfedb5768/sdk/en7529/linux-4.4.115/arch/mips/include/asm/tc3162/tc3182_int_source.h#L37-L44
merbanan commented 2025-11-08 12:06:22 +00:00
Owner
Copy Link
Copy Source

The WED and WDMA hardware blocks are probably inherited from the EN7528 SoC design. It seems like they took the mips irq indices and mapped them in with an offset of 16.

The wed is supposed to only be able to accelerate in the downstream direction. The NPUs are supposed to be able to do both US/DS. The NPUs are most likely driver dependant.

If the aim is long term linux mainline support then I think the WED path should be taken instead of the NPUs. On the AN7581 the NPUs are standard RISCV32 and in theory one could implement open source packet offloading there. The AN7523 NPU binaries are some kind of obfuscation. Most likely the opcodes are substituted or something.

Anyway wed enabled driver code should be possible to get going as it should be similar to what Mediatek has in main line.

The WED and WDMA hardware blocks are probably inherited from the EN7528 SoC design. It seems like they took the mips irq indices and mapped them in with an offset of 16. The wed is supposed to only be able to accelerate in the downstream direction. The NPUs are supposed to be able to do both US/DS. The NPUs are most likely driver dependant. If the aim is long term linux mainline support then I think the WED path should be taken instead of the NPUs. On the AN7581 the NPUs are standard RISCV32 and in theory one could implement open source packet offloading there. The AN7523 NPU binaries are some kind of obfuscation. Most likely the opcodes are substituted or something. Anyway wed enabled driver code should be possible to get going as it should be similar to what Mediatek has in main line.
Sirherobrine23 commented 2025-11-08 12:24:54 +00:00
Author
Owner
Copy Link
Copy Source

I haven't found any reference drivers in Econet's GPLs so far. I'm going to download them to my computer so I can search better. I found almost nothing in the GPL I have from Airoha.

When I was testing the Mediatek drivers, I couldn't get any signal that was working.

I haven't found any reference drivers in Econet's GPLs so far. I'm going to download them to my computer so I can search better. I found almost nothing in the GPL I have from Airoha. When I was testing the Mediatek drivers, I couldn't get any signal that was working.
merbanan commented 2025-11-08 13:01:30 +00:00
Owner
Copy Link
Copy Source

I dont think this hit production devices besides for EN7528. And you need to understand alot about the mt76 to be able to get it working properly. The wed/wdma is from the same generation as MT7622 so maybe it is needed to look back at that platform and its open code to see if the old integration code worked better.

I dont think this hit production devices besides for EN7528. And you need to understand alot about the mt76 to be able to get it working properly. The wed/wdma is from the same generation as MT7622 so maybe it is needed to look back at that platform and its open code to see if the old integration code worked better.
merbanan commented 2025-11-08 13:20:32 +00:00
Owner
Copy Link
Copy Source

Ok, it looks like the WED is connected to GDM3. So that is how packets come in to the PPE(Frame engine). The frame engine needs proper setup to handle the packets.

Ok, it looks like the WED is connected to GDM3. So that is how packets come in to the PPE(Frame engine). The frame engine needs proper setup to handle the packets.
Sirherobrine23 commented 2025-11-08 13:21:47 +00:00
Author
Owner
Copy Link
Copy Source

Therefore, the functioning of the frame engine is a priority

Therefore, the functioning of the frame engine is a priority
Sirherobrine23 added a new dependency 2025-11-08 13:21:59 +00:00
#2 Ethernet
Sirherobrine23 added the Kind/DocumentationKind/Enhancement
Priority
Medium
3
 labels 2025-11-09 01:30:32 +00:00
Sirherobrine23 added this to the (deleted) project 2025-11-09 01:32:44 +00:00
Sirherobrine23 moved this to To Do in EN7523 on 2025-11-09 01:33:08 +00:00
Sirherobrine23 moved this to Backlog in EN7523 on 2025-11-09 01:33:12 +00:00
Sirherobrine23 added this to the Ethernet milestone 2025-12-08 17:48:33 +00:00
Sirherobrine23 commented 2025-12-09 02:04:56 +00:00
Author
Owner
Copy Link
Copy Source

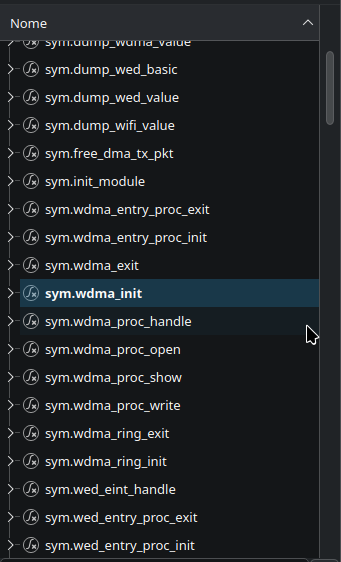

I found wed and wdma within this module; I'll take a look at it to try and understand how it works

I found wed and wdma within this module; I'll take a look at it to try and understand how it works
Captura de tela 2025_12_08 23-04-34.png
18 KiB
mt_whnat.ko
91 KiB
Captura de tela 2025_12_08 23-02-21.png
61 KiB
Captura de tela 2025_12_08 23-04-34.png Captura de tela 2025_12_08 23-02-21.png
Sirherobrine23 commented 2025-12-09 02:15:17 +00:00
Author
Owner
Copy Link
Copy Source

Dump code with ghidra
mt_whnat.ko.c

Dump code with ghidra [mt_whnat.ko.c](/attachments/f4acad37-8c61-4fb4-872d-376fd2f1a06f)
mt_whnat.ko.c
169 KiB
merbanan commented 2025-12-09 06:56:41 +00:00
Owner
Copy Link
Copy Source

Ill dig out the mt76 source code with wed support. But dont spend to much time on looking through binaries. I have access to this some where in source form.

Ill dig out the mt76 source code with wed support. But dont spend to much time on looking through binaries. I have access to this some where in source form.
merbanan commented 2025-12-20 12:53:45 +00:00
Owner
Copy Link
Copy Source

Ok, I found code and patches. It is a huge mess. Wed is used to accelerated SoC Wifi tx and NPU seems to handle SoC wifi rx. On the AN7581 I think the NPUs take care of both rx and tx.

The problem is that I very much doubt that things are ABI stable. And the vendor SDK uses binary drivers for the WED part.

So if AN7581 will not use the WED then development of WED hw acceleration support is going to be really hard.

Ok, I found code and patches. It is a huge mess. Wed is used to accelerated SoC Wifi tx and NPU seems to handle SoC wifi rx. On the AN7581 I think the NPUs take care of both rx and tx. The problem is that I very much doubt that things are ABI stable. And the vendor SDK uses binary drivers for the WED part. So if AN7581 will not use the WED then development of WED hw acceleration support is going to be really hard.
merbanan commented 2025-12-21 11:28:15 +00:00
Owner
Copy Link
Copy Source

This is mt76 driver. It is a (probably) non working version with regards to NPU acceleration but the WED parts should be ok. The WED driver used is the proprietary one so it can only be used as reference for enabling the kernel woe driver.

This is mt76 driver. It is a (probably) non working version with regards to NPU acceleration but the WED parts should be ok. The WED driver used is the proprietary one so it can only be used as reference for enabling the kernel woe driver.
1115-mt76-testmode-add-ZWDFS-test-mode-support.patch
23 KiB
1113-mt76-testmode-add-pre-cal-support.patch
26 KiB
1111-mt76-testmode-rework-testmode-init-registers.patch
15 KiB
1008-mt76-mt7915-drop-undefined-action-frame.patch
1.2 KiB
1006-mt76-mt7915-add-support-for-runtime-set-in-band-disc.patch
1.3 KiB
1004-mt76-mt7915-add-support-for-muru_onoff-via-debugfs.patch
3.9 KiB
5001-airoha-add-bbsoc-and-atenl-fix-from-mp10.patch
8.5 KiB
3010-mt76-mt7915-wed-HW-ATF-support-for-mt7986.patch
32 KiB
1122-mt76-mt7915-add-vendor-subcmd-EDCCA-ctrl-enable-thre.patch
11 KiB
1001-mt76-mt7915-add-mtk-internal-debug-tools-for-mt76.patch
209 KiB
3013-mt76-mt7915-wed-fix-potential-memory-leakage.patch
2.6 KiB
3011-mt76-mt7915-wed-add-mt7916-2-pcie-support-when-wed-o.patch
2.5 KiB
3009-mt76-mt7915-wed-drop-scatter-and-gather-frame.patch
1.7 KiB
3007-mt76-mt7915-wed-update-mt7916-trinfo-when-hw-path-en.patch
4.5 KiB
5003-mt76_support_woe_npu.patch
102 KiB
1128-mt76-mt7915-add-E3-re-bonding-for-low-yield-rate-iss.patch
4.2 KiB
4003-mt76-revert-for-backports-5.15-wireless-stack.patch
44 KiB
3008-mt76-mt7915-wed-find-rx-token-by-physical-address.patch
1.4 KiB
3006-mt76-mt7915-wed-enable-red-per-band-token-drop-for-H.patch
5.4 KiB
1126-mt76-mt7915-add-vendor-subcmd-three-wire-PTA-ctrl.patch
8.1 KiB
1124-mt76-mt7915-initialize-wcid.patch
793 B
1002-mt76-mt7915-csi-implement-csi-support.patch
25 KiB
1123-mt76-mt7915-implement-bin-file-mode.patch
8.1 KiB
1121-mt76-mt7915-add-phy-capability-vendor-command.patch
4.2 KiB
1119-mt76-connac-airtime-fairness-feature-off-in-mac80211.patch
785 B
1117-mt76-mt7915-init-rssi-in-WTBL-when-add-station.patch
1005 B
1114-mt76-testmode-add-iBF-command-mode-support.patch
8.3 KiB
1112-mt76-testmode-additional-supports.patch
79 KiB
1009-mt76-mt7915-add-fw_version-dump.patch
3.2 KiB
1007-mt76-mt7915-add-mt76-vendor-muru-onoff-command.patch
4.1 KiB
0005-wifi-mt76-mt7915-set-sku-initial-value-to-zero.patch
833 B
mt76-2022-12-09-7fae1de1.tar.xz
4.5 MiB
3003-mt76-connac-wed-add-wed-rx-copy-skb.patch
1.9 KiB
3002-mt76-mt7915-wed-add-wds-support-when-wed-is-enabled.patch
5.4 KiB
1118-mt76-mt7915-reduce-TWT-SP-sent-to-FW-for-cert.patch
932 B
1130-mt76-mt7915-add-bf-backoff-limit-table-support.patch
13 KiB
1116-mt76-testmode-add-iBF-eBF-cal-and-cert-commands-with.patch
59 KiB
0001-wifi-mt76-mt7915-call-mt7915_mcu_set_thermal_throttl.patch
1.6 KiB
1129-mt76-mt7915-support-on-off-SW-ACI-through-debugfs.patch
1.9 KiB
5004-fix_mt7916d_onboarding_npu_can_not_work_issue_v1.patch
3.1 KiB
3005-mt76-mt7915-wed-add-ser-support-when-wed-on.patch
8.7 KiB
1120-mt76-mt7915-add-mt7986-and-mt7916-pre-calibration.patch
5.9 KiB
0003-wifi-mt76-mt7915-rework-mt7915_thermal_temp_store.patch
2.1 KiB
3012-mt76-mt7915-wed-add-rxwi-for-further-in-chip-rro-dev.patch
15 KiB
1127-mt76-mt7915-add-ibf-control-vendor-cmd.patch
4.0 KiB
1125-mt76-mt7915-Add-hemu-dump-support.patch
2.3 KiB
1005-mt76-mt7915-certification-patches.patch
32 KiB
1003-mt76-mt7915-air-monitor-support.patch
14 KiB
0006-wifi-mt76-mt7915-add-chip-id-condition-in-mt7915_che.patch
1.4 KiB
0004-wifi-mt76-mt7915-add-error-message-in-mt7915_thermal.patch
2.3 KiB
0002-wifi-mt76-mt7915-rework-mt7915_mcu_set_thermal_throt.patch
4.5 KiB
5002-airoha-auto-calibration.patch
5.9 KiB
5000-airoha-disable-mtk-woe-to-upgrade-mp20-base-different-kernel.patch
2.1 KiB
4001-mt76-revert-get_of_mac_addr.patch
861 B
4002-mt76-include-header-files-for-module-param.patch
1.6 KiB
3004-mt76-mt7915-wed-add-fill-receive-path-to-report-wed-.patch
1.3 KiB
3001-mt76-mt7915-wed-add-wed-tx-support.patch
3.6 KiB
1131-mt76-mt7915-amsdu-set-and-get-control.patch
4.9 KiB
merbanan commented 2026-01-11 13:48:02 +00:00
Owner
Copy Link
Copy Source
Aura E650 boot log
Resetting in 3 seconds....
resetting ...
Secure key does not exist

EN7523DRAMC V0.5
dram_type = 5, speed = 1866
Final Impdance Cal Result: OCDP:0x14, OCDN:0x17, ODTP:0x6, ODTN:0x6
DDR1866 PLL setting init
[Dramc] PCDDR3 AC Timing update
Fire MRW command...
ModeReg.2, value.0x20 done
Fire MRW command...
ModeReg.3, value.0x0 done
Fire MRW command...
ModeReg.1, value.0x6 done
Fire MRW command...
ModeReg.0, value.0x1114 done
Fire MRW command...
ModeReg.1, value.0x86 done
Fire MRW command...
ModeReg.1, value.0x6 done
Calculate size.
DRAM size=512MB


U-Boot 2023.07.02-OpenWrt-r24232-539228933c (Jan 08 2026 - 18:01:56 +0000)

CPU:   Airoha EN7562DT
DRAM:  496 MiB
Core:  12 devices, 8 uclasses, devicetree: fit
spi-nand: spi_nand spinand@0: Micron SPI NAND was found.
spi-nand: spi_nand spinand@0: 256 MiB, block size: 128 KiB, page size: 2048, OOB size: 128
+ 0x000000000000-0x000010000000 : "spi-nand0"
  + 0x000000000000-0x000000100000 : "u-boot"
  + 0x000000100000-0x000010000000 : "ubi"
Loading Environment from UBI... ubi0: default fastmap pool size: 100
ubi0: default fastmap WL pool size: 50
ubi0: attaching mtd2
ubi0: scanning is finished
ubi0: attached mtd2 (name "ubi", size 255 MiB)
ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
ubi0: good PEBs: 2040, bad PEBs: 0, corrupted PEBs: 0
ubi0: user volume: 10, internal volumes: 1, max. volumes count: 128
ubi0: max/mean erase counter: 2/0, WL threshold: 4096, image sequence number: 1202214982
ubi0: available PEBs: 744, total reserved PEBs: 1296, PEBs reserved for bad PEB handling: 40
Read 126976 bytes from volume env1 to 9e6dff40
Read 126976 bytes from volume env2 to 9e6fef80
OK
In:    serial@1fbf0000
Out:   serial@1fbf0000
Err:   serial@1fbf0000
Net:   eth0: en75xx-eth
apply matching dtb: E655_R1
Hit any key to stop autoboot:  0
Saving Environment to UBI... UBI partition 'ubi' already selected
Writing to redundant UBI... done
OK
Read 4 bytes from volume rootfs2 to 80500000
Detected squashfs.
No size specified -> Using max size (3555328)
Read 3555328 bytes from volume boot2 to 81800000
## Loading kernel from FIT Image at 81800000 ...
   Using 'E655_R1' configuration
   Trying 'kernel-1' kernel subimage
     Description:  ARM OpenWrt Linux-dev_iopsys_eu_airoha_linux_git-e4cbbae346be39a5e8fb90f87a6b370fd94fed2e
     Type:         Kernel Image
     Compression:  lzma compressed
     Data Start:   0x81802000
     Data Size:    3429532 Bytes = 3.3 MiB
     Architecture: ARM
     OS:           Linux
     Load Address: 0x80088000
     Entry Point:  0x80088000
     Hash algo:    crc32
     Hash value:   759cf56e
     Hash algo:    sha1
     Hash value:   d71e2cd12f2cddc58739233136a5ba16ff9d4977
   Verifying Hash Integrity ... crc32+ sha1+ OK
## Loading fdt from FIT Image at 81800000 ...
   Using 'E655_R1' configuration
   Trying 'fdt-E655_R1' fdt subimage
     Description:  ARM OpenWrt E655_R1 device tree
     Type:         Flat Device Tree
     Compression:  uncompressed
     Data Start:   0x81b4c000
     Data Size:    13701 Bytes = 13.4 KiB
     Architecture: ARM
     Load Address: 0x9e400000
     Hash algo:    crc32
     Hash value:   1fa0f328
     Hash algo:    sha1
     Hash value:   354cad95501d85a86411c1e0b5308e2a15766fea
   Verifying Hash Integrity ... crc32+ sha1+ OK
   Loading fdt from 0x81b4c000 to 0x9e400000
## Loading fdt from FIT Image at 81800000 ...
   Trying 'fdt-tapir-image-version' fdt subimage
     Description:  ARM OpenWrt tapir-image-version device tree overlay
     Type:         Flat Device Tree
     Compression:  uncompressed
     Data Start:   0x81b54000
     Data Size:    478 Bytes = 478 Bytes
     Architecture: ARM
     Load Address: 0x9e406b84
     Hash algo:    crc32
     Hash value:   20d32160
     Hash algo:    sha1
     Hash value:   e6ebb3709553ad91d242ef7cd8faf68abd9ac3ed
   Verifying Hash Integrity ... crc32+ sha1+ OK
   Booting using the fdt blob at 0x9e400000
Working FDT set to 9e400000
   Uncompressing Kernel Image
   Loading Device Tree to 9e713000, end 9e7196c6 ... OK
Working FDT set to 9e713000
   Loading Device Tree to 9e709000, end 9e7126c6 ... OK
Working FDT set to 9e709000

Starting kernel ...

[    0.000000] Booting Linux on physical CPU 0x0
[    0.000000] Linux version 5.4.55 (dev@runner-zu3ysmoqv-project-348-concurrent-0) (gcc version 12.3.0 (OpenWrt GCC 12.3.0 r24232-539228933c)) #0 SMP Thu Jan 8 14:43:32 2026
[    0.000000] CPU: ARMv7 Processor [410fd034] revision 4 (ARMv7), cr=10c5383d
[    0.000000] CPU: div instructions available: patching division code
[    0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
[    0.000000] OF: fdt: Machine model: Aura-E655-DVT
[    0.000000] Malformed early option 'earlycon'
[    0.000000] Memory policy: Data cache writealloc
[    0.000000] psci: probing for conduit method from DT.
[    0.000000] psci: PSCIv1.1 detected in firmware.
[    0.000000] psci: Using standard PSCI v0.2 function IDs
[    0.000000] psci: MIGRATE_INFO_TYPE not supported.
[    0.000000] psci: SMC Calling Convention v1.0
[    0.000000] [c08014ec]npu_pkt_buf_addr=9d109000:9d109000
[    0.000000] npu_pkt_buffer memblock_alloc:9d109000,buf_size=1600000
percpu: Embedded 15 pages/cpu s29964 r8192 d23284 u61440
[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 129344
[    0.000000] Kernel command line: console=ttyS0,115200n8 earlycon qdma_init=33 serdes_sel=3 mtdparts=spi_nand:1M(u-boot),-(ubi) ubi.mtd=ubi ubi.block=0,rootfs2 rootfstype=squashfs root=/dev/ubiblock0_5 ethaddr=00:E0:92:00:01:40
[    0.000000] Dentry cache hash table entries: 65536 (order: 6, 262144 bytes, linear)
[    0.000000] Inode-cache hash table entries: 32768 (order: 5, 131072 bytes, linear)
[    0.000000] mem auto-init: stack:all, heap alloc:off, heap free:off
[    0.000000] Memory: 474540K/522496K available (7168K kernel code, 243K rwdata, 1564K rodata, 1024K init, 272K bss, 47956K reserved, 0K cma-reserved, 0K highmem)
[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
[    0.000000] rcu: Hierarchical RCU implementation.
[    0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.
[    0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 64
[    0.000000] GICv3: 256 SPIs implemented
[    0.000000] GICv3: 0 Extended SPIs implemented
[    0.000000] GICv3: Distributor has no Range Selector support
[    0.000000] GICv3: 16 PPIs implemented
[    0.000000] GICv3: no VLPI support, no direct LPI support
[    0.000000] GICv3: CPU0: found redistributor 0 region 0:0x09080000
[    0.000000] random: get_random_bytes called from start_kernel+0x2c4/0x3f4 with crng_init=0
[    0.000000] arch_timer: cp15 timer(s) running at 25.00MHz (virt).
[    0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x5c40939b5, max_idle_ns: 440795202646 ns
[    0.000004] sched_clock: 56 bits at 25MHz, resolution 40ns, wraps every 4398046511100ns
[    0.000011] Switching to timer-based delay loop, resolution 40ns
[    0.000108] Calibrating delay loop (skipped), value calculated using timer frequency.. 50.00 BogoMIPS (lpj=250000)
[    0.000118] pid_max: default: 32768 minimum: 301
[    0.000238] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.000246] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[    0.000863] CPU: Testing write buffer coherency: ok
[    0.001135] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000
[    0.001512] Setting up static identity map for 0x80100000 - 0x80100060
[    0.001594] rcu: Hierarchical SRCU implementation.
[    0.001729] gic-its@09020000: unable to locate ITS domain
[    0.001926] smp: Bringing up secondary CPUs ...
[    0.016765] GICv3: CPU1: found redistributor 1 region 0:0x090a0000
[    0.016795] CPU1: thread -1, cpu 1, socket 0, mpidr 80000001
[    0.016914] smp: Brought up 1 node, 2 CPUs
[    0.016928] SMP: Total of 2 processors activated (100.00 BogoMIPS).
[    0.016933] CPU: All CPU(s) started in SVC mode.
[    0.019546] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[    0.019566] futex hash table entries: 512 (order: 3, 32768 bytes, linear)
[    0.019690] pinctrl core: initialized pinctrl subsystem
[    0.019981] NET: Registered protocol family 16
[    0.020243] DMA: preallocated 256 KiB pool for atomic coherent allocations
[    0.021432] No ATAGs?printk: console [pstore-1] enabled
[    0.225939] pstore: Registered ramoops as persistent store backend
[    0.226078] ramoops: using 0x80000@0x8ff80000, ecc: 16
[    0.232406]
[    0.232406] l2c_sram_size:0x0
[    0.235782] Initializing Ecnt Event Netlink Socket
[    0.235961] Initializing Econet Event Netlink Socket nl_sk = (ptrval)
[    0.239365] iommu: Default domain type: Translated
[    0.239660] usbcore: registered new interface driver usbfs
[    0.239766] usbcore: registered new interface driver hub
[    0.239955] usbcore: registered new device driver usb
[    0.240552] NET: Registered protocol family 8
[    0.240699] NET: Registered protocol family 20
[    0.241070] clocksource: Switched to clocksource arch_sys_counter
[    0.241805] thermal_sys: Registered thermal governor 'step_wise'NET: Registered protocol family 2
[    0.242567] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 6144 bytes, linear)
[    0.242737] TCP established hash table entries: 4096 (order: 2, 16384 bytes, linear)
[    0.242912] TCP bind hash table entries: 4096 (order: 3, 32768 bytes, linear)
[    0.243044] TCP: Hash tables configured (established 4096 bind 4096)
[    0.243250] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
[    0.243405] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
[    0.243621] NET: Registered protocol family 1
[    0.243788] PCI: CLS 0 bytes, default 64
[    0.244130] SGMII_Version : A7523.00.06
[    0.244249] sgmii: pon_sgmii_init
[    0.271068] enable!
[    0.271145] sgmii: sgmii_serdes_sel: exit!
[    0.271593] SGMII_Version : A7523.00.06
[    0.271678] sgmii probe init
[    0.271861] sgmii:int_name: sgmii_pcie0
[    0.271939] sgmii:int_id: 0
[    0.272168] sgmii:int_register: inin!
[    0.272311] sgmii:sgmii->pcs1_base= e087b100
[    0.272386] sgmii:sgmii->pcs2_base= e087da00
[    0.272460] sgmii:sgmii->an_base=   e0901000
[    0.272596] sgmii:sgmii->ra_base=   e0903600
[    0.272669] sgmii:sgmii->phya_base=   e0905c00
[    0.272744] sgmii:int_register: exit!
[    0.272880] sgmii: init
[    0.272954] sgmii: sgmii_serdes_sel
[    0.273026] sgmii: pcie0: close!
[    0.273164] sgmii: sgmii_serdes_sel: exit!
[    0.273239] sgmii: init_exit
[    0.273313] sgmii probe init exit
[    0.273461] SGMII_Version : A7523.00.06
[    0.273600] sgmii probe init
[    0.273712] sgmii:int_name: sgmii_pcie1
[    0.273788] sgmii:int_id: 1
[    0.274059] sgmii:int_register: inin!
[    0.274139] sgmii:sgmii->pcs1_base= e0907100
[    0.274214] sgmii:sgmii->pcs2_base= e0909a00
[    0.274350] sgmii:sgmii->an_base=   e090b000
[    0.274424] sgmii:sgmii->ra_base=   e090d600
[    0.274499] sgmii:sgmii->phya_base=   e090fc00
[    0.274635] sgmii:int_register: exit!
[    0.274708] sgmii: init
[    0.274782] sgmii: sgmii_serdes_sel
[    0.274917] sgmii: pcie1: close!
[    0.301072] sgmii: sgmii_serdes_sel: exit!
[    0.301152] sgmii: init_exit
[    0.301289] sgmii probe init exit
[    0.301460] SGMII_Version : A7523.00.06
[    0.301536] sgmii probe init
[    0.301655] sgmii:int_name: sgmii_usb0
[    0.301793] sgmii:int_id: 2
[    0.302023] sgmii:int_register: inin!
[    0.302103] sgmii:sgmii->pcs1_base= e0911100
[    0.302239] sgmii:sgmii->pcs2_base= e0913a00
[    0.302314] sgmii:sgmii->an_base=   e0915000
[    0.302387] sgmii:sgmii->ra_base=   e0917600
[    0.302524] sgmii:sgmii->phya_base=   e0919c00
[    0.302597] sgmii:int_register: exit!
[    0.302732] sgmii: init
[    0.302806] sgmii: sgmii_serdes_sel
[    0.302879] sgmii: usb0: enable!
[    0.302956] sgmii: sgmii_serdes_sel: exit!
[    0.361061] sgmii: int_init called
[    0.391061] sgmii: sync_int exit
[    0.421060] sgmii: init_exit
[    0.421198] sgmii probe init exit
[    0.422436] irq-0: 109 irq-1: 110 [crypto_k] res->name:crypto_k@1fb70000
[    0.422837] [crypto_k] res->start:0x1fb70000 ===
[    0.422975] [crypto_k] res->end:0x1fb70803 ===
[    0.423050] [crypto_k] ecnt_crypto_k->base:0xe0973000
[    0.423511] test_uc:(ptrval) test_c:(ptrval) cpu_top->base:(ptrval)
[    0.423673] [apb_timer] ecnt_timer_drv_probe
[    0.423823] [timer] ecnt_timer->irq: 79
[    0.423959] [timer] res->name:apb_timer1@1fbf0100
[    0.424253]
[    0.424253] i2c_slave init(ecnt_i2c_slave_drv_probe) done
[    0.424669] 7523 Thermal Sensor address probe done
[    0.424750] iddq = 51
[    0.424897] [thermal] thermal_phy->irq: 119
[    0.425139] [i2s] ecnt_i2s_drv_probe
[    0.426001] workingset: timestamp_bits=14 max_order=17 bucket_order=3
[    0.431268] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.431468] jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
[    0.462100] io scheduler mq-deadline registered
[    0.462188] io scheduler kyber registered
[    0.463103] en7523-pctl_probe 1fa20210.pinctrl: initialised Airoha EN7523 pinctrl driver
[    0.463548] GPIO line 25 (DECT on) hogged as output/high
[    0.463978] gpio gpiochip1: (1fbf0270.gpio): detected irqchip that is shared with multiple gpiochips: please fix the driver.
[    0.464435] PCIe driver version: 7523.0.20210201
[    0.464530] PCIe ref clk init.
[    0.465749] ===EN7523 PCIe initmtk-pcie 1fa91000.pcie: pcie rc 0 linkup success
[    0.823922] mtk-pcie 1fa91000.pcie: pcie rc 1 linkup success
[    0.824062]
[    0.824062] ===============PCIe check===tmp_reg=========81014c3===========
[    0.824261] mtk-pcie 1fa91000.pcie: PCI host bridge to bus 0000:00
[    0.824408] pci_bus 0000:00: root bus resource [??? 0x00000000 flags 0x0]
[    0.824549] pci_bus 0000:00: root bus resource [mem 0x20000000-0x2fffffff]
[    0.824628] pci_bus 0000:00: root bus resource [bus 00-ff]
[    0.824796] pci 0000:00:00.0: [14c3:0810] type 01 class 0x060400
[    0.825184] pci 0000:00:01.0: [14c3:0811] type 01 class 0x060400
[    0.826375] PCI: bus0: Fast back to back transfers disabled
[    0.826462] pci 0000:00:00.0: bridge configuration invalid ([bus 00-00]), reconfiguring
[    0.826612] pci 0000:00:01.0: bridge configuration invalid ([bus 00-00]), reconfiguring
[    0.826965] pci 0000:01:00.0: [14c3:7915] type 00 class 0x000280
[    0.827326] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x000fffff 64bit pref]
[    0.827570] pci 0000:01:00.0: reg 0x18: [mem 0x00000000-0x00003fff 64bit pref]
[    0.827751] pci 0000:01:00.0: reg 0x20: [mem 0x00000000-0x00000fff 64bit pref]
[    0.828532] pci 0000:01:00.0: supports D1 D2
[    0.828610] pci 0000:01:00.0: PME# supported from D0 D1 D2 D3hot D3cold
[    0.828885] pci 0000:01:00.0: 2.000 Gb/s available PCIe bandwidth, limited by 2.5 GT/s x1 link at 0000:00:00.0 (capable of 4.000 Gb/s with 5 GT/s x1 link)
[    0.830097] PCI: bus1: Fast back to back transfers disabled
[    0.830244] pci_bus 0000:01: busn_res: [bus 01-ff] end is updated to 01
[    0.830526] pci 0000:02:00.0: [14c3:7915] type 00 class 0x000280
[    0.830948] pci 0000:02:00.0: reg 0x10: [mem 0x00000000-0x000fffff 64bit pref]
[    0.831157] pci 0000:02:00.0: reg 0x18: [mem 0x00000000-0x00003fff 64bit pref]
[    0.831402] pci 0000:02:00.0: reg 0x20: [mem 0x00000000-0x00000fff 64bit pref]
[    0.832189] pci 0000:02:00.0: supports D1 D2
[    0.832268] pci 0000:02:00.0: PME# supported from D0 D1 D2 D3hot D3cold
[    0.832544] pci 0000:02:00.0: 2.000 Gb/s available PCIe bandwidth, limited by 2.5 GT/s x1 link at 0000:00:01.0 (capable of 4.000 Gb/s with 5 GT/s x1 link)
[    0.833771] PCI: bus2: Fast back to back transfers disabled
[    0.833856] pci_bus 0000:02: busn_res: [bus 02-ff] end is updated to 02
[    0.834020] pci 0000:00:00.0: BAR 8: assigned [mem 0x20000000-0x201fffff]
[    0.834163] pci 0000:00:01.0: BAR 8: assigned [mem 0x20200000-0x203fffff]
[    0.834246] pci 0000:01:00.0: BAR 0: assigned [mem 0x20000000-0x200fffff 64bit pref]
[    0.834469] pci 0000:01:00.0: BAR 2: assigned [mem 0x20100000-0x20103fff 64bit pref]
[    0.834691] pci 0000:01:00.0: BAR 4: assigned [mem 0x20104000-0x20104fff 64bit pref]
[    0.834851] pci 0000:00:00.0: PCI bridge to [bus 01]
[    0.834996] pci 0000:00:00.0:   bridge window [mem 0x20000000-0x201fffff]
[    0.835084] pci 0000:02:00.0: BAR 0: assigned [mem 0x20200000-0x202fffff 64bit pref]
[    0.835307] pci 0000:02:00.0: BAR 2: assigned [mem 0x20300000-0x20303fff 64bit pref]
[    0.835530] pci 0000:02:00.0: BAR 4: assigned [mem 0x20304000-0x20304fff 64bit pref]
[    0.835687] pci 0000:00:01.0: PCI bridge to [bus 02]
[    0.835829] pci 0000:00:01.0:   bridge window [mem 0x20200000-0x203fffff]
[    0.838013]
[    0.838013]  mt7512_pcie_fixup: 0x1438 = 20000015
[    0.838013]  mt7512_pcie_rc0_retrain: 80 = 0145dc12 80 = 01608c12
[    0.838013] RC0 Link Traing Result: 10120008
[    0.838013] ===========RC0 set conf space INTx=============
[    1.852278]
[    1.852278]  mt7512_pcie_fixup: 0x2438 = 20200015
[    1.852278]  mt7512_pcie_rc1_retrain: 80 = 0145dc12 80 = 01608c12
[    1.852278] RC1 Link Traing Result: 10120008
[    1.852278] ===========RC1 set conf space INTx=============
[    2.869522] Serial: 8250/16550 driver, 2 ports, IRQ sharing disabled
[    2.870303] printk: console [ttyS0] disabled
[    2.870440] 1fbf0000.serial: ttyS0 at MMIO 0x1fbf0000 (irq = 94, base_baud = 115200) is a Airoha 16550
[    4.054374] printk: console [ttyS0] enabled
[    4.059069] 1fbf0300.serial: ttyS1 at MMIO 0x1fbf0300 (irq = 95, base_baud = 460800) is a Airoha 16550
[    4.069037] data output always not ready
[    4.073365] airoha-trng 1faa1000.airoha_trng: [v1.01] registerd TRNG driver
[    4.080617] random: fast init done
[    4.084245] random: crng init done
[    4.094858] brd: module loaded
[    4.102384] loop: module loaded
[    4.105885] en75xx-spi 1fa10000.spi_controller: found spi controller at 0x1fa10000
[    4.113687] en75xx-spi 1fa10000.spi_controller: found nfi controller at 0x1fa11000
[    4.121921] spi-nand spi0.0: Micron SPI NAND was found.
[    4.127225] spi-nand spi0.0: 256 MiB, block size: 128 KiB, page size: 2048, OOB size: 128
[    4.135604] 2 cmdlinepart partitions found on MTD device spi_nand
[    4.141789] Creating 2 MTD partitions on "spi_nand":
[    4.146885] 0x000000000000-0x000000100000 : "u-boot"
[    4.153229] 0x000000100000-0x000010000000 : "ubi"
[    4.371503] libphy: Fixed MDIO Bus: probed
[    4.375677] PPP generic driver version 2.4.2
[    4.380072] PPP BSD Compression module registered
[    4.384876] PPP Deflate Compression module registered
[    4.389995] NET: Registered protocol family 24
[    4.394780] USB driver version: 7523.4.20210825
[    4.401383] port 0 u2_slew_rate_cal_7523
[    4.407368] FM_OUT value = 113(0x00000071)
[    4.412598] SR calibration value = 5
[    4.416234] port 1 u2_slew_rate_cal_7523
[    4.421280] FM_OUT value = 113(0x00000071)
[    4.426444] SR calibration value = 5
[    7.461073] xhci-hcd 1fab0000.xhci: xHCI Host Controller
[    7.466540] xhci-hcd 1fab0000.xhci: new USB bus registered, assigned bus number 1
[    7.574301] xhci-hcd 1fab0000.xhci: irq 111, io mem 0x1fab0000
[    7.580738] hub 1-0:1.0: USB hub found
[    7.584624] hub 1-0:1.0: 2 ports detected
[    7.589088] xhci-hcd 1fab0000.xhci: xHCI Host Controller
[    7.594513] xhci-hcd 1fab0000.xhci: new USB bus registered, assigned bus number 2
[    7.602213] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[    7.610736] hub 2-0:1.0: USB hub found
[    7.614673] hub 2-0:1.0: 1 port detected
[    7.619066] usbcore: registered new interface driver cdc_acm
[    7.624891] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[    7.633041] usbcore: registered new interface driver usbserial_generic
[    7.639715] usbserial: USB Serial support registered for generic
[    7.645814] usbcore: registered new interface driver cypress_m8
[    7.651883] usbserial: USB Serial support registered for DeLorme Earthmate USB
[    7.659244] usbserial: USB Serial support registered for HID->COM RS232 Adapter
[    7.666651] usbserial: USB Serial support registered for Nokia CA-42 V2 Adapter
[    7.674113] usbcore: registered new interface driver ftdi_sio
[    7.679936] usbserial: USB Serial support registered for FTDI USB Serial Device
[    7.687696] i2c-mt7621 1fbf8000.mtk_i2c: I2C reset failed!
[    7.693385] i2c-mt7621 1fbf8000.mtk_i2c: clock 400 kHz
[    7.698799] watchdog: watchdog@0,0: driver supplied timeout (300) out of range
[    7.706551] device-mapper: ioctl: 4.41.0-ioctl (2019-09-16) initialised: dm-devel@redhat.com
[    7.715734] hidraw: raw HID events driver (C) Jiri Kosina
[    7.721407] usbcore: registered new interface driver usbhid
[    7.727054] usbhid: USB HID core driver
[    7.731839] IPv4 over IPsec tunneling driver
[    7.736675] ipt_CLUSTERIP: ClusterIP Version 0.8 loaded successfully
[    7.743222] Initializing XFRM netlink socket
[    7.747959] NET: Registered protocol family 10
[    7.753350] Segment Routing with IPv6
[    7.757324] sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver
[    7.764256] NET: Registered protocol family 17
[    7.768858] NET: Registered protocol family 15
[    7.773467] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[    7.786571] 8021q: 802.1Q VLAN Support v1.8
[    7.790870] sctp: Hash tables configured (bind 512/512)
[    7.796485] lib80211: common routines for IEEE802.11 drivers
[    7.802320] Registering SWP/SWPB emulation handler
[    7.809776] ubi0: attaching mtd1
[    8.981156] ubi0: scanning is finished
[    8.994481] ubi0: attached mtd1 (name "ubi", size 255 MiB)
[    9.000109] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[    9.007139] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[    9.014004] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[    9.021097] ubi0: good PEBs: 2040, bad PEBs: 0, corrupted PEBs: 0
[    9.027261] ubi0: user volume: 10, internal volumes: 1, max. volumes count: 128
[    9.034709] ubi0: max/mean erase counter: 2/0, WL threshold: 4096, image sequence number: 1202214982
[    9.043978] ubi0: available PEBs: 746, total reserved PEBs: 1294, PEBs reserved for bad PEB handling: 40
[    9.053952] ubi0: background thread "ubi_bgt0d" started, PID 71
[    9.066181] block ubiblock0_5: created from ubi0:5(rootfs2)
[    9.075282] VFS: Mounted root (squashfs filesystem) readonly on device 253:0.
[    9.083646] Freeing unused kernel memory: 1024K
[    9.111260] Run /sbin/init as init process
[    9.393864] init: Console is alive
[    9.397560] init: - watchdog -
[   10.465201] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[   10.500280] bootr_en75xx: loading out-of-tree module taints kernel.
[   10.507182] airoha-bootr 1fb00240.bootr: boot reason: POR
[   10.521660] tcledctrl_stub - init
[   10.529192] SCSI subsystem initialized
[   10.548827] usbcore: registered new interface driver usb-storage
[   10.560560] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[   10.581542] init: - preinit -
opconf: do_opconf_userconf
Failed to connect to ubus
Error: could not find property iowrt_image_version.
[   13.901657] block ubiblock0_4: created from ubi0:4(rootfs1)
[   13.962207] /dev/ubiblock0_4: Can't open blockdev
mount: mounting /dev/ubiblock0_4 on /tmp/other_bank_mount failed: No such file or directory
opconf: other bank version is
opconf: Unable to determine other bank version, but UBI flash detected - proceeding with migration
[   14.287901] UBIFS (ubi0:7): default file-system created
[   14.293941] UBIFS (ubi0:7): Mounting in unauthenticated mode
[   14.299800] UBIFS (ubi0:7): background thread "ubifs_bgt0_7" started, PID 819
[   14.357223] UBIFS (ubi0:7): UBIFS: mounted UBI device 0, volume 7, name "overlay2"
[   14.364896] UBIFS (ubi0:7): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[   14.374945] UBIFS (ubi0:7): FS size: 32378880 bytes (30 MiB, 255 LEBs), journal size 1650688 bytes (1 MiB, 13 LEBs)
[   14.385514] UBIFS (ubi0:7): reserved for root: 1529334 bytes (1493 KiB)
[   14.392262] UBIFS (ubi0:7): media format: w5/r0 (latest is w5/r0), UUID 4051D758-8C8D-4C4E-AC8F-F088BE28F6AA, small LPT model
opconf: Mounted current overlay partition
opconf: backup file /tmp/opconf_overlay/data/upper/sysupgrade.tgz does not exist
[   14.421448] UBIFS (ubi0:7): un-mount UBI device 0
[   14.426250] UBIFS (ubi0:7): background thread "ubifs_bgt0_7" stops
opconf: Unmounted current overlay
Upgrade from U-Boot detected. Removing usr_data content!
[   15.005805] UBIFS (ubi0:7): Mounting in unauthenticated mode
[   15.029634] UBIFS (ubi0:7): background thread "ubifs_bgt0_7" started, PID 940
[   15.094125] UBIFS (ubi0:7): UBIFS: mounted UBI device 0, volume 7, name "overlay2"
[   15.101865] UBIFS (ubi0:7): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[   15.111855] UBIFS (ubi0:7): FS size: 32378880 bytes (30 MiB, 255 LEBs), journal size 1650688 bytes (1 MiB, 13 LEBs)
[   15.122425] UBIFS (ubi0:7): reserved for root: 1529334 bytes (1493 KiB)
[   15.129167] UBIFS (ubi0:7): media format: w5/r0 (latest is w5/r0), UUID 4051D758-8C8D-4C4E-AC8F-F088BE28F6AA, small LPT model
Wiping overlay (reason: upgrade from U-Boot).
[   15.236695] UBIFS (ubi0:7): un-mount UBI device 0
[   15.241519] UBIFS (ubi0:7): background thread "ubifs_bgt0_7" stops
[   15.454266] UBIFS (ubi0:7): default file-system created
[   15.460182] UBIFS (ubi0:7): Mounting in unauthenticated mode
[   15.466110] UBIFS (ubi0:7): background thread "ubifs_bgt0_7" started, PID 1001
[   15.523578] UBIFS (ubi0:7): UBIFS: mounted UBI device 0, volume 7, name "overlay2"
[   15.531249] UBIFS (ubi0:7): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[   15.541300] UBIFS (ubi0:7): FS size: 32378880 bytes (30 MiB, 255 LEBs), journal size 1650688 bytes (1 MiB, 13 LEBs)
[   15.551868] UBIFS (ubi0:7): reserved for root: 1529334 bytes (1493 KiB)
[   15.558612] UBIFS (ubi0:7): media format: w5/r0 (latest is w5/r0), UUID E471ACE3-6E0B-4441-AD8D-A9309BE8425A, small LPT model
[   15.920690] procd: - early -
[   15.923876] procd: - watchdog -
Failed to connect to ubus
[   16.511262] procd: - watchdog -
[   16.514778] procd: - ubus -
[   16.694991] procd: - init -
[   16.856556] tccicmd: module license 'unspecified' taints kernel.
[   16.862755] Disabling lock debugging due to kernel taint
[   16.868803] tccicmd V1.1.0.0 (2026:01:08-17:59:06)
[   16.891115] (gdump_mode_sel): GDUMP sel has switch to 3
[   16.896579] ECNT_HOOK_ERROR occur. ECNT_API_XPON_MODE_GET:215
[   16.913790] ifc_set_action: cpu:1, nbq:1
[   16.917882] ifc_set_action: cpu:1, nbq:1
[   16.921960] ifc_set_action: cpu:1, nbq:2
[   16.925962] ifc_set_action: cpu:1, nbq:1
[   16.930024] ifc_set_action: cpu:1, nbq:1
[   16.934043] ifc_set_action: cpu:1, nbq:1
[   16.938050] ifc_set_action: cpu:1, nbq:1
[   16.942136] ifc_set_action: cpu:1, nbq:2
[   16.946168] ifc_set_action: cpu:1, nbq:2
[   16.950184] ifc_set_action: cpu:1, nbq:1
[   16.954297] ifc_set_action: cpu:1, nbq:1
[   16.958314] ifc_set_action: cpu:1, nbq:1
[   16.962348] ifc_set_action: cpu:1, nbq:1
[   16.966427] ifc_set_action: cpu:1, nbq:3
[   16.970444] ifc_set_action: cpu:1, nbq:1
[   16.974480] ifc_set_action: cpu:1, nbq:1
[   16.978560] ifc_set_action: cpu:1, nbq:1
[   16.982601] ifc_set_action: cpu:1, nbq:1
[   16.986680] ifc_set_action: cpu:1, nbq:1
[   16.990697] ifc_set_action: cpu:1, nbq:1
[   16.994752] ifc_set_action: cpu:1, nbq:7
[   16.999269] ifc_set_action: cpu:1, nbq:8
[   17.016744] macType = 0
[   17.019307] flashQdmaInit = 0x33
[   17.050335] gpQdmaPriv->hwFwdBuffAddr = 0x1f6f0840, hwFwdBuffAddr = 0xdf6f0840
[   17.117836] copy NPU binary:/lib/firmware/npu_rv32.bin(69384 Bytes) to 0xe0f80000
[   17.174609] copy NPU binary:/lib/firmware/npu_data.bin(760 Bytes) to 0xe0c00000
[C0]core freq at 333000000 Hz
[C0]timer_init: Timer clk is running at 125 Mhz
[C0]npu_gre_tunnel_tx_header_init L15 gre_tx_head_addr[0]=0x8400351c
[C0]npu_gre_tunnel_tx_header_init L15 gre_tx_head_addr[1]=0x84003544
[C0][NPU] ba_node_init...
[C0]baNode_array_init
[C0]counter_init:2
[C0][NPU] queue_mutex_init...
[C1]core1_main
[C2]timer_isr  Store Value 1e903000, val[C2]core2_main
[C2]do npu_enq_deq_init
[C3]core3_main
[C3]core3_main for npu tunnel offload v21
[C3]npu bridge buf init sucess
[   17.586531] [c0801478]npu_pkt_buf_addr=9d109000
[   17.591238] npu_wifi_offload_get_pkt_buf_addr=9d109000
[   17.596467] [c0801478]npu_pkt_buf_addr=9d109000
[C0]wifi_mail_data->wifi_mail_private.npuPktBufAddr=9d109000, 9d109000
[C0](core0_main) just return, because QDMA driver for ARM is not ready
[   17.627833] ether.c:v1.00-NAPI 29.Mar.2015
[   17.632118] eth0 (uninitialized): netif_napi_add() called with weight 128
[   17.639074] eth0: FE MAC Ethernet address: 00:E0:92:00:01:40
[   17.648496] Use Internal switch ,type 10
[   17.658329] netlink init
[   17.666927] tcPhyVerLookUp 2400 94A1
[   17.670680]  7523 Ge,
[   17.673230] , port_num = 0, ephy_addr = 9, ephy_addr_base = 0x9
[   17.689336]   GE Rext AnaCal Done! (5)(0x25)
[   17.694555]   GE Rext AnaCal Done! (5)(0x25)
[   17.713999]   GE R45 AnaCal zcal_idx(before table) (dec: 45) (hex: 0x2d)
[   17.721037]   GE R45 AnaCal Done! (cnt:13)(after table) ([7][6:0]:0x51) ([6:0]:0xd1)
[   17.741194]   GE R45 AnaCal zcal_idx(before table) (dec: 43) (hex: 0x2b)
[   17.748156]   GE R45 AnaCal Done! (cnt:11)(after table) ([7][6:0]:0x56) ([6:0]:0xd6)
[   17.767360]   GE R45 AnaCal zcal_idx(before table) (dec: 42) (hex: 0x2a)
[   17.774457]   GE R45 AnaCal Done! (cnt:10)(after table) ([7][6:0]:0x58) ([6:0]:0xd8)
[   17.793701]   GE R45 AnaCal zcal_idx(before table) (dec: 42) (hex: 0x2a)
[   17.800731]   GE R45 AnaCal Done! (cnt:10)(after table) ([7][6:0]:0x58) ([6:0]:0xd8)
[   17.817359]  GE Tx offset AnaCal Done! (5)(0x24)
[   17.826247]  GE Tx offset AnaCal Done! (2)(0x21)
[   17.837057]  GE Tx offset AnaCal Done! (4)(0x23)
[   17.844978]  GE Tx offset AnaCal Done! (1)(0x1)
[   17.869439]  GE Tx amp AnaCal Done! (15) (0x2f)
[   17.892825]  GE Tx amp AnaCal Done! (16) (0x30)
[   17.912380]  GE Tx amp AnaCal Done! (12) (0x2c)
[   17.934752]  GE Tx amp AnaCal Done! (15) (0x2f)
[   17.956605]  [tcPhyInit] in  [tcPhyInit] out , r31 = (9, 0x0)
[   18.018337] tcPhyVerLookUp 2400 94A1
[   18.022105]  7523 Ge,
[   18.024593] , port_num = 1, ephy_addr = 10, ephy_addr_base = 0x9
[   18.046686]   GE R45 AnaCal zcal_idx(before table) (dec: 43) (hex: 0x2b)
[   18.053679]   GE R45 AnaCal Done! (cnt:11)(after table) ([7][6:0]:0x56) ([6:0]:0xd6)
[   18.071949]   GE R45 AnaCal zcal_idx(before table) (dec: 41) (hex: 0x29)
[   18.078981]   GE R45 AnaCal Done! (cnt:9)(after table) ([7][6:0]:0x5b) ([6:0]:0xdb)
[   18.096220]   GE R45 AnaCal zcal_idx(before table) (dec: 40) (hex: 0x28)
[   18.103276]   GE R45 AnaCal Done! (cnt:8)(after table) ([7][6:0]:0x5e) ([6:0]:0xde)
[   18.120580]   GE R45 AnaCal zcal_idx(before table) (dec: 40) (hex: 0x28)
[   18.127583]   GE R45 AnaCal Done! (cnt:8)(after table) ([7][6:0]:0x5e) ([6:0]:0xde)
[   18.143172]  GE Tx offset AnaCal Done! (4)(0x23)
[   18.152013]  GE Tx offset AnaCal Done! (2)(0x2)
[   18.161793]  GE Tx offset AnaCal Done! (3)(0x3)
[   18.169624]  GE Tx offset AnaCal Done! (1)(0x1)
[   18.188619]  GE Tx amp AnaCal Done! (9) (0x29)
[   18.202489]  GE Tx amp AnaCal Done! (6) (0x26)
[   18.219104]  GE Tx amp AnaCal Done! (9) (0x29)
[   18.236860]  GE Tx amp AnaCal Done! (10) (0x2a)
[   18.258745]  [tcPhyInit] in  [tcPhyInit] out , r31 = (10, 0x0)
[   18.320574] tcPhyVerLookUp 2400 94A1
[   18.324347]  7523 Ge,
[   18.326840] , port_num = 2, ephy_addr = 11, ephy_addr_base = 0x9
[   18.347951]   GE R45 AnaCal zcal_idx(before table) (dec: 42) (hex: 0x2a)
[   18.354935]   GE R45 AnaCal Done! (cnt:10)(after table) ([7][6:0]:0x58) ([6:0]:0xd8)
[   18.373247]   GE R45 AnaCal zcal_idx(before table) (dec: 41) (hex: 0x29)
[   18.380280]   GE R45 AnaCal Done! (cnt:9)(after table) ([7][6:0]:0x5b) ([6:0]:0xdb)
[   18.398467]   GE R45 AnaCal zcal_idx(before table) (dec: 41) (hex: 0x29)
[   18.405518]   GE R45 AnaCal Done! (cnt:9)(after table) ([7][6:0]:0x5b) ([6:0]:0xdb)
[   18.424626]   GE R45 AnaCal zcal_idx(before table) (dec: 42) (hex: 0x2a)
[   18.431623]   GE R45 AnaCal Done! (cnt:10)(after table) ([7][6:0]:0x58) ([6:0]:0xd8)
[   18.446337]  GE Tx offset AnaCal Done! (3)(0x22)
[   18.455209]  GE Tx offset AnaCal Done! (2)(0x21)
[   18.464128]  GE Tx offset AnaCal Done! (2)(0x21)
[   18.472065]  GE Tx offset AnaCal Done! (1)(0x1)
[   18.487269]  GE Tx amp AnaCal Done! (5) (0x25)
[   18.499324]  GE Tx amp AnaCal Done! (4) (0x24)
[   18.519816]  GE Tx amp AnaCal Done! (13) (0x2d)
[   18.536612]  GE Tx amp AnaCal Done! (9) (0x29)
[   18.558370]  [tcPhyInit] in  [tcPhyInit] out , r31 = (11, 0x0)
[   18.620184] tcPhyVerLookUp 2400 94A1
[   18.623974]  7523 Ge,
[   18.626510] , port_num = 3, ephy_addr = 12, ephy_addr_base = 0x9
[   18.649638]   GE R45 AnaCal zcal_idx(before table) (dec: 44) (hex: 0x2c)
[   18.656690]   GE R45 AnaCal Done! (cnt:12)(after table) ([7][6:0]:0x53) ([6:0]:0xd3)
[   18.675915]   GE R45 AnaCal zcal_idx(before table) (dec: 42) (hex: 0x2a)
[   18.683056]   GE R45 AnaCal Done! (cnt:10)(after table) ([7][6:0]:0x58) ([6:0]:0xd8)
[   18.702320]   GE R45 AnaCal zcal_idx(before table) (dec: 42) (hex: 0x2a)
[   18.709320]   GE R45 AnaCal Done! (cnt:10)(after table) ([7][6:0]:0x58) ([6:0]:0xd8)
[   18.728576]   GE R45 AnaCal zcal_idx(before table) (dec: 42) (hex: 0x2a)
[   18.735566]   GE R45 AnaCal Done! (cnt:10)(after table) ([7][6:0]:0x58) ([6:0]:0xd8)
[   18.750265]  GE Tx offset AnaCal Done! (3)(0x22)
[   18.759207]  GE Tx offset AnaCal Done! (2)(0x21)
[   18.769061]  GE Tx offset AnaCal Done! (3)(0x22)
[   18.778896]  GE Tx offset AnaCal Done! (3)(0x22)
[   18.798012]  GE Tx amp AnaCal Done! (9) (0x29)
[   18.820265]  GE Tx amp AnaCal Done! (15) (0x2f)
[   18.841780]  GE Tx amp AnaCal Done! (14) (0x2e)
[   18.862314]  GE Tx amp AnaCal Done! (13) (0x2d)
[   18.884185]  [tcPhyInit] in  [tcPhyInit] out , r31 = (12, 0x0)
[   18.956539] macType = 0
[   18.959064] flashQdmaInit = 0x33
[   18.965973] gpQdmaPriv->hwFwdBuffAddr = 0x1f2f0840, hwFwdBuffAddr = 0xdf2f0840
[   18.976337] fe resource init start
[   18.984984] whnat_module_init(): module init and register callback for whnat
[   18.992217] mt_wlan_hook_register:46 !!!!!
[   18.996416] mt_wlan_hook_register:50 !!!!!
[   19.000676] mt_wlan_hook_register:53 ops_priority=0 cur_priority=0 !!!!!
[   19.007501] mt_wlan_hook_register:66 !!!!!
[   19.011810] create whnat_ctrl ok!!!
[   19.015452] wed_slot_map_get(): assign slot_id:0 for entry: 0!
[   19.021483] wed_slot_map_get(): assign slot_id:1 for entry: 1!
[   19.038777] Ralink HW NAT Module Enabled
[   19.045989] you need to modify struct FoeEntryExtKernel in soft_dma.h			when you modifyied struct FoeEntryExt!SRAM_FOE_NUM=7, means PPE_FOE_NUM=512
[   19.059517] HWNAT Module enabled with Type:L2B/IPv4/IPv6/DS-LITE/6RD, foeSize:64B, sram_foeNum:512, dram_foeNum:16384
[   19.070449] IP check use Black List
[   19.076922] EN7523 PPE SRAM HW default setting is 512 at 64byte, no need to set by sw
[   19.097124] tso_lan: tso_v2.c [201]: dscpDmaAddr =9a420000
[   19.104340] tso_lan: tso_v2.c [263]: diPtr->dscpIdx = 0
[   19.109755] tso_lan: tso_v2.c [263]: diPtr->dscpIdx = 0
[   19.115122] tso_proc_init.
[   19.129889] eth0: starting interface.
[   19.133776] netif_start_queue
[   19.893276] UBIFS (ubi0:9): Mounting in unauthenticated mode
[   19.992308] UBIFS (ubi0:9): UBIFS: mounted UBI device 0, volume 9, name "boarddata", R/O mode
[   20.000979] UBIFS (ubi0:9): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[   20.011052] UBIFS (ubi0:9): FS size: 3047424 bytes (2 MiB, 24 LEBs), journal size 1015809 bytes (0 MiB, 6 LEBs)
[   20.021281] UBIFS (ubi0:9): reserved for root: 143937 bytes (140 KiB)
[   20.027793] UBIFS (ubi0:9): media format: w5/r0 (latest is w5/r0), UUID AB3DBFA4-E1A0-4C49-BA75-320B76F274E0, small LPT model
[   20.103866] UBIFS (ubi0:99): default file-system created
[   20.109921] UBIFS (ubi0:99): Mounting in unauthenticated mode
[   20.133860] UBIFS (ubi0:99): background thread "ubifs_bgt0_99" started, PID 1973
[   20.184283] UBIFS (ubi0:99): UBIFS: mounted UBI device 0, volume 99, name "usr_data"
[   20.192207] UBIFS (ubi0:99): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[   20.202355] UBIFS (ubi0:99): FS size: 15618048 bytes (14 MiB, 123 LEBs), journal size 1015809 bytes (0 MiB, 6 LEBs)
[   20.212931] UBIFS (ubi0:99): reserved for root: 737678 bytes (720 KiB)
[   20.219531] UBIFS (ubi0:99): media format: w5/r0 (latest is w5/r0), UUID 1B9E3FE3-AA19-4BCF-BA67-3C77899A4105, small LPT model
[   21.563511] ecnt_wifi_eeprom: band0 uses art eeprom
[   21.632543] ecnt_wifi_eeprom: Updating macaddr field in /tmp/wifi_band0_eeprom.bin
[   21.680465] ecnt_wifi_eeprom: band1 uses art eeprom
[   21.752211] ecnt_wifi_eeprom: Updating macaddr field in /tmp/wifi_band1_eeprom.bin
crond[2192]: crond (busybox 1.36.1) started, log level 5
[   24.171092] monitor value xxxxxxx
[   54.395483] kmodloader: loading kernel modules from /etc/modules.d/*
[   54.437863] NET: Registered protocol family 38
[   54.482798] tun: Universal TUN/TAP device driver, 1.6
[   54.497661] l2tp_core: L2TP core driver, V2.0
[   54.503918] l2tp_netlink: L2TP netlink interface
[   54.511139] nat46: module (version 4c5beee236841724219598fabb1edc93d4f08ce5) loaded.
[   54.525044] gre: GRE over IPv4 demultiplexor driver
[   54.538149] ip_gre: GRE over IPv4 tunneling driver
[   54.558588] ip6_gre: GRE over IPv6 tunneling driver
[   54.648322] i2c /dev entries driver
[   54.662841] fuse: init (API version 7.31)
[   54.675880] usbcore: registered new interface driver cdc_wdm
[   54.682968] Loading modules backported from Linux version v5.15.92-0-ge515b9902f5f
[   54.690690] Backport generated by backports.git v5.15.92-1-0-gdfe0f60c
[   54.699216] usbcore: registered new interface driver cp210x
[   54.705678] usbserial: USB Serial support registered for cp210x
[   54.764605] l2tp_ppp: PPPoL2TP kernel driver, V2.0
[   54.871146] libphy: GPIO Bitbanged MDIO: probed
[   55.034569] nf_conntrack_rtsp v0.7 loading
[   55.050102] nf_nat_rtsp v0.7 loading
[   55.055476] usbcore: registered new interface driver pl2303
[   55.061246] usbserial: USB Serial support registered for pl2303
[   55.068774] PPP MPPE Compression module registered
[   55.074639] PPTP driver version 0.8.5
[   55.079589] usbcore: registered new interface driver sierra
[   55.085415] usbserial: USB Serial support registered for Sierra USB modem
[   55.100909] wireguard: WireGuard 1.0.20220627 loaded. See www.wireguard.com for information.
[   55.109453] wireguard: Copyright (C) 2015-2019 Jason A. Donenfeld <Jason@zx2c4.com>. All Rights Reserved.
[   55.132353] xt_time: kernel timezone is -0000
[   55.137630] usbcore: registered new interface driver cdc_eem
[   55.144902] usbcore: registered new interface driver cdc_ether
[   55.152704] usbcore: registered new interface driver cdc_ncm
[   55.159209] usbcore: registered new interface driver cdc_subset
[   55.184919] usbcore: registered new interface driver huawei_cdc_ncm
[   55.226352] usbcore: registered new interface driver kalmia
[   55.274429] irq: no irq domain found for interrupt-controller !
[   55.280604] woe_enable_chk:120 error!!!
[   55.284571] -->2) Error 2 opening /etc/woe_disable
[   55.289595] npu_enable_chk:164 error!!!
[   55.293542] npu npu_controller setting
[   55.293542]  default open npu  2 opening /etc/npu_enable
[   55.302864] pci 0000:00:00.0: enabling device (0140 -> 0142)
[   55.308686] mt7915e 0000:01:00.0: enabling device (0140 -> 0142)
[   55.314995] mt7915_mmio_probe:1192 band=0 !!!
[   55.319428] call HOSTDAPT WIFI HOOK  2G
[   55.323507] hostdapt_registe_wifitask 0
[   55.327412] init 2G tasklet !
[   55.442521] whnat_driver_init:264 call hook sys up & hif init !!!!!
[   55.448929] whnat_cap_support:83 chip_id=30997 !!!!!
[   55.453985] whnat_cap_support(): chip_id=7915 is in WHNAT support list
[   55.460646] whnat_driver_init(): (efault) whnat is enable !!!
[   55.466488] wifi_slot_get(): bus name=PCI Bus 0000:01, funid=0, get slot id=0
[   55.473777] whnat_entry_acquire:106 slot_id = 0 !!!!!
[   55.478966] whnat_entry_acquire(): PCIE SLOT:0, hook to WHNAT,entry id=0
[   55.486878] wed_ring_init(): wed ring init result = 0
[   55.509536] create wed ok!!!
[   55.512573] wdma_init(): wdma(0) base addr=e0afe000
[   55.517537] wdma_init(): wdma(0) irq[0]=83
[   55.521785] wdma_init(): wdma(0) irq[1]=84
[   55.525965] wdma_init(): wdma(0) irq[2]=85
[   55.530593] wifi_chip_probe(): Chang CHIP IRQ: 81 to WHNAT IRQ: 89
[   55.539967] wifi_slot_get(): bus name=PCI Bus 0000:01, funid=0, get slot id=0
[   55.547264] wifi_slot_get(): bus name=PCI Bus 0000:01, funid=0, get slot id=0
[   55.554632] whnat_probe(): probe fail since whnat is full!
[   55.560273] whnat_dev0: probe of 1fa02000.wed2 failed with error -1
[   55.567477] whnat_wed_ring_rx_update():614 index=0 val=95516000 !!!
[   55.573923] whnat_wed_ring_rx_update():614 index=4 val=200 !!!
[   55.579826] whnat_wed_ring_rx_update():614 index=8 val=1ff !!!
[   55.587342] wdma_dma_ctrl(): WDMA_GLO_CFG=40000450
[   55.592240] =========whnat_hal_wdma_init :ECNT WED_WDMA_CFG_BASE = 1fa00000
[   55.599422] whnat_hal_wdma_ring_init(): configure ring 0 setting
[   55.605528] whnat_hal_wdma_ring_init(): wed:b543388e,wdma:da496980: 100=0,104=1024,108=0
[   55.613775] whnat_hal_wdma_ring_init(): configure ring 1 setting
[   55.619920] whnat_hal_wdma_ring_init(): wed:b543388e,wdma:da496980: 110=0,114=1024,118=0
[   55.628101] whnat_hal_wpdma_ring_init(): configure ring 0 setting
[   55.634355] whnat_hal_wpdma_ring_init(): wed:b543388e wifi:19607ddd: d7300=96848000,d7304=2048,d7308=0
[   55.643817] whnat_hal_wpdma_ring_init(): configure ring 1 setting
[   55.649986] whnat_hal_wpdma_ring_init(): wed:b543388e wifi:19607ddd: d7310=96850000,d7314=2048,d7318=0
[   55.715113] mt7915e 0000:01:00.0: HW/SW Version: 0x8a108a10, Build Time: 20250409180459a
[   55.715113]
[   55.903998] mt7915e 0000:01:00.0: WM Firmware Version: ____000000, Build Time: 20250917151758
[   55.931006] mt7915e 0000:01:00.0: WA Firmware Version: DEV_000000, Build Time: 20250311151233
[   56.042319] mt7915_mcu_init_firmware:2440 dev_ver=1 recv_id=0 !!!
[   56.048961] chip_type_check:101 open error !!!
[   56.056544] band_calibrated:130 open error !!!
[   56.061136] bbsoc_load_eeprom_from_bin:247 use default !!!
[   56.066693] mt7915e 0000:01:00.0: bbsoc_load_eeprom_from_bin() file_path:/lib/firmware/mediatek/mt7915_eeprom_2g.bin
[   56.077389] mt7915e 0000:01:00.0: load eeprom succesfully from /lib/firmware/mediatek/mt7915_eeprom_2g.bin
[   56.087196] mt7915e 0000:01:00.0: mt7915_eeprom_load flash_mode
[   56.093254] mt7915e 0000:01:00.0: val:0x24
[   56.097418] mt7915e 0000:01:00.0: e2p matched with mt7915a hw
[   56.111942] npuOffload on mt76 init
[   56.115677] the value of pdev->bus->self->devfn is 0 ,and the band_index is 0
[   56.122965] DriverModel=0
[   56.125833] Error: 7915A NPU_WIFI_OFFLOAD Set Dirver Model success
[   56.132309] Error: 7915A NPU_WIFI_OFFLOAD Set PCIE PORT success
[   56.138456] !!!! do phy and virtual address mapping
[   56.145007] the addr of NCounter2G_Base is e0b7e0e4
[   56.150999] dramBaEntry_pa=94e00000
[   56.154723] after :pci_resource_start= 20000000
[C0][NPU] npu_set_pcie_base, addr=200d4500, band_idx=0
[C0][npu_set_pcie_base] 2.4G pcieBase 200d4500 mem_base 200d4500, hw_rx_desc=0
[C0][NPU] npu_init...
[C0]Chip id(4) support NPU Wifi ffload
[C0][NPU]  pkt_queue_init...
[C0]counter_init:0
[C0][NPU] Enter(2.4G) npu_npu_init_rxd, band_idx=0, rx_ring_size=1536
[   56.188354] WIFI_MAIL_API_GET_WAIT_RXDESC_BASE info=1e806020
[   56.194410] irq: no irq domain found for interrupt-controller !
[   56.200457] woe_enable_chk:120 error!!!
[   56.204497] -->2) Error 2 opening /etc/woe_disable
[   56.209379] npu_enable_chk:164 error!!!
[   56.213347] npu npu_controller setting
[   56.213347]  default open npu  2 opening /etc/npu_enable
[   56.222685] pci 0000:00:01.0: enabling device (0140 -> 0142)
[   56.228526] mt7915e 0000:02:00.0: enabling device (0140 -> 0142)
[   56.234901] mt7915_mmio_probe:1192 band=1 !!!
[   56.239416] call HOSTDAPT WIFI HOOK  5G
[   56.243515] hostdapt_registe_wifitask 1
[   56.247465] init 5G tasklet !
[   56.371099] whnat_driver_init:264 call hook sys up & hif init !!!!!
[   56.377453] whnat_cap_support:83 chip_id=30997 !!!!!
[   56.382587] whnat_cap_support(): chip_id=7915 is in WHNAT support list
[   56.389186] whnat_driver_init(): (efault) whnat is enable !!!
[   56.395096] wifi_slot_get(): bus name=PCI Bus 0000:02, funid=8, get slot id=1
[   56.402319] whnat_entry_acquire:106 slot_id = 1 !!!!!
[   56.407511] whnat_entry_acquire(): PCIE SLOT:1, hook to WHNAT,entry id=1
[   56.415454] wed_ring_init(): wed ring init result = 0
[   56.438073] create wed ok!!!
[   56.441121] wdma_init(): wdma(1) base addr=e1234400
[   56.446089] wdma_init(): wdma(1) irq[0]=86
[   56.450325] wdma_init(): wdma(1) irq[1]=87
[   56.454522] wdma_init(): wdma(1) irq[2]=88
[   56.459166] wifi_chip_probe(): Chang CHIP IRQ: 82 to WHNAT IRQ: 90
[   56.465454] wifi_slot_get(): bus name=PCI Bus 0000:02, funid=8, get slot id=1
[   56.472754] wifi_slot_get(): bus name=PCI Bus 0000:02, funid=8, get slot id=1
[   56.480858] whnat_wed_ring_rx_update():614 index=0 val=93b7e000 !!!
[   56.487312] whnat_wed_ring_rx_update():614 index=4 val=200 !!!
[   56.493249] whnat_wed_ring_rx_update():614 index=8 val=1ff !!!
[   56.500700] wdma_dma_ctrl(): WDMA_GLO_CFG=40000450
[   56.505598] =========whnat_hal_wdma_init :ECNT WED_WDMA_CFG_BASE = 1fa00000
[   56.512801] whnat_hal_wdma_ring_init(): configure ring 0 setting
[   56.518882] whnat_hal_wdma_ring_init(): wed:59cc59a7,wdma:c523c452: 100=0,104=1024,108=0
[   56.527120] whnat_hal_wdma_ring_init(): configure ring 1 setting
[   56.533289] whnat_hal_wdma_ring_init(): wed:59cc59a7,wdma:c523c452: 110=0,114=1024,118=0
[   56.541475] whnat_hal_wpdma_ring_init(): configure ring 0 setting
[   56.547706] whnat_hal_wpdma_ring_init(): wed:59cc59a7 wifi:42104311: d7300=991f8000,d7304=2048,d7308=0
[   56.557165] whnat_hal_wpdma_ring_init(): configure ring 1 setting
[   56.563355] whnat_hal_wpdma_ring_init(): wed:59cc59a7 wifi:42104311: d7310=952c0000,d7314=2048,d7318=0
[   56.591613] mt7915e 0000:02:00.0: HW/SW Version: 0x8a108a10, Build Time: 20250409180459a
[   56.591613]
[   56.611220] mt7915e 0000:02:00.0: WM Firmware Version: ____000000, Build Time: 20250917151758
[   56.638368] mt7915e 0000:02:00.0: WA Firmware Version: DEV_000000, Build Time: 20250311151233
[   56.749669] mt7915_mcu_init_firmware:2440 dev_ver=1 recv_id=0 !!!
[   56.756269] chip_type_check:101 open error !!!
[   56.760794] band_calibrated:130 open error !!!
[   56.765400] bbsoc_load_eeprom_from_bin:227 use default !!!
[   56.770971] mt7915e 0000:02:00.0: bbsoc_load_eeprom_from_bin() file_path:/lib/firmware/mediatek/mt7915_eeprom.bin
[   56.781462] mt7915e 0000:02:00.0: load eeprom succesfully from /lib/firmware/mediatek/mt7915_eeprom.bin
[   56.790999] mt7915e 0000:02:00.0: mt7915_eeprom_load flash_mode
[   56.797077] mt7915e 0000:02:00.0: val:0x24
[   56.801270] mt7915e 0000:02:00.0: e2p matched with mt7915a hw
[   56.810582] npuOffload on mt76 init
[   56.814377] the value of pdev->bus->self->devfn is 8 ,and the band_index is 1
[   56.821671] DriverModel=0
[   56.824555] Error: 7915A NPU_WIFI_OFFLOAD Set Dirver Model success
[   56.831015] Error: 7915A NPU_WIFI_OFFLOAD Set PCIE PORT success
[   56.837267] after :pci_resource_start= 20200000
[C0][NPU] npu_set_pcie_base, addr=202d4500, band_idx=1
[C0][npu_set_pcie_base] 5G pcieBase 202d4500 mem_base 202d4500, hw_rx_desc=0
[C0][NPU] npu_init...
[C0]Chip id(4) support NPU Wifi ffload
[C0][NPU]  pkt_queue_init...
[C0]counter_init:1
[C0][NPU] Enter npu_npu_init_rxd_5G, band_idx=1, rx_ring_size=1536
[   56.870438] WIFI_MAIL_API_GET_WAIT_RXDESC_BASE info=1e800000
[   56.886782] usbcore: registered new interface driver option
[   56.892588] usbserial: USB Serial support registered for GSM modem (1-port)
[   56.902008] usbcore: registered new interface driver qcserial
[   56.907963] usbserial: USB Serial support registered for Qualcomm USB modem
[   56.918158] usbcore: registered new interface driver qmi_wwan
[   56.930498] usbcore: registered new interface driver sierra_net
[   56.938165] usbcore: registered new interface driver cdc_mbim
[   56.944984] kmodloader: done loading kernel modules from /etc/modules.d/*
[   71.470865] ae wan mac driver init
[   71.474571] sgmii_api_pon0_force_hsgmii: inint
[   71.511358] sgmii_api_pon0_force_hsgmii: exit
[   71.641084] ae wan mac driver init OK
[   71.938883] xsi mac driver init
[   71.942345] sgmii_api_usb0_force_hsgmii: inint
[   71.946964] sgmii_api_usb0_force_hsgmii: exit
[   71.951595] xsi mac driver init OK
[   75.991838] /dev/ubiblock0_4: Can't open blockdev
[   76.880303] /dev/ubiblock0_4: Can't open blockdev
[   77.611572] /dev/ubiblock0_4: Can't open blockdev
reset reason: POR_RESET
- system upgraded -
[   84.767037] br-lan: port 1(eth1) entered blocking state
[   84.772577] br-lan: port 1(eth1) entered disabled state
[   84.778125] device eth1 entered promiscuous mode
[   84.802520] br-lan: port 2(eth0.1) entered blocking state
[   84.808110] br-lan: port 2(eth0.1) entered disabled state
[   84.813989] device eth0.1 entered promiscuous mode
[   84.828961] br-lan: port 3(eth0.2) entered blocking state
[   84.834508] br-lan: port 3(eth0.2) entered disabled state
[   84.840275] device eth0.2 entered promiscuous mode
[   84.859233] br-lan: port 4(eth0.3) entered blocking state
[   84.864866] br-lan: port 4(eth0.3) entered disabled state
[   84.876961] device eth0.3 entered promiscuous mode
[   87.553767] genlmsg_multicast() failed = -3
[   87.559198] br-lan: port 4(eth0.3) entered blocking state
[   87.564753] br-lan: port 4(eth0.3) entered forwarding state
[   87.590090] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready
[   88.450017] /dev/ubiblock0_4: Can't open blockdev
[   92.571353] ifc_set_action: cpu:1, nbq:1
[   92.575368] ifc_set_action: cpu:1, nbq:1
[   92.579432] ifc_set_action: cpu:1, nbq:2
[   92.583515] ifc_set_action: cpu:1, nbq:1
[   92.587522] ifc_set_action: cpu:1, nbq:1
[   92.591654] ifc_set_action: cpu:1, nbq:1
[   92.595668] ifc_set_action: cpu:1, nbq:1
[   92.599681] ifc_set_action: cpu:1, nbq:2
[   92.603787] ifc_set_action: cpu:1, nbq:2
[   92.607789] ifc_set_action: cpu:1, nbq:1
[   92.611816] ifc_set_action: cpu:1, nbq:1
[   92.615882] ifc_set_action: cpu:1, nbq:1
[   92.619880] ifc_set_action: cpu:1, nbq:1
[   92.623919] ifc_set_action: cpu:1, nbq:3
[   92.627985] ifc_set_action: cpu:1, nbq:1
[   92.632010] ifc_set_action: cpu:1, nbq:1
[   92.636010] ifc_set_action: cpu:1, nbq:1
[   92.640070] ifc_set_action: cpu:1, nbq:1
[   92.644090] ifc_set_action: cpu:1, nbq:1
[   92.648109] ifc_set_action: cpu:1, nbq:1
[   92.652252] ifc_set_action: cpu:1, nbq:7
[   92.656669] ifc_set_action: cpu:1, nbq:8
[   96.766825] WARNING! power/level is deprecated; use power/control instead
[   97.946812] status:
DSPCore[Ver:TVM1.0.17.0-37],IsHdVoice=0,VOIP_MAX_CHAN=16
[   98.148896] [1] PCM V2.4 (Oct 24 2021 09:01:35)
[   98.198852] bind irq-113 to CPU1
[   98.202191] PCM_INT=28
[   98.204710] pcm[Ver:TVM1.0.17.0-37]
[   98.345371] lec[Ver:TVM1.0.17.0-37]
[   98.410052] SYS_HCLK=250
[   98.412728] Major Num:233, device: spi
[   98.416656] spi[Ver:TVM1.0.17.0-37]
[   98.426446] [4294947137][spi][INFO][SPI_slic_check:L2654]set slic type: ===0===
[   98.433951] [4294947138][spi][INFO][SPI_slic_check:L2655]set interface_type: ===1===
[   98.442077] [4294947139][spi][INFO][SPI_slic_check:L2656]set slicid: ===0===
[   98.449307] [4294947139][spi][INFO][set_gpio_clocksrc:L2362]set gpio clocksrc,interface:1,devNum:1,gpio:1000
[   98.459306] [4294947140][spi][INFO][set_gpio_clocksrc:L2373]ZSI
[   98.465320] [4294947141][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512======
[   98.473313] [4294947142][spi][INFO][SPI_Reset:L536]
[   98.473313]  SPI_Reset 2
[   98.591147] [4294947154][spi][INFO][SPI_slic_check:L2683]======spi check zarlink======
[   98.599331] [4294947154][spi][INFO][SPI_slic_check:L2698]res_arr[0]:0xff
[   98.599331] res_arr[1]:0xff
[   98.609068] [4294947155][spi][INFO][SPI_slic_check:L2765][zarlink] unknown slic type!reset times:1
[   98.618208] [4294947156][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512======
[   98.626254] [4294947157][spi][INFO][SPI_Reset:L536]
[   98.626254]  SPI_Reset 2
[   98.751154] [4294947170][spi][INFO][SPI_slic_check:L2683]======spi check zarlink======
[   98.759272] [4294947170][spi][INFO][SPI_slic_check:L2698]res_arr[0]:0xff
[   98.759272] res_arr[1]:0xff
[   98.769036] [4294947171][spi][INFO][SPI_slic_check:L2765][zarlink] unknown slic type!reset times:2
[   98.778260] [4294947172][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512======
[   98.786310] [4294947173][spi][INFO][SPI_Reset:L536]
[   98.786310]  SPI_Reset 2
[   98.887882] set meterID=0, rate=0, mode=0, portID=0x2
[   98.893183] basicParameter = 0x0
[   98.896481] rate_cfg: value = 0x80000001
[   98.900471] tokenRate = 0x0
[   98.903348] rate_cfg: value = 0x90000001
[   98.907339] bucketSize_shift = 0x1
[   98.910809] rate_cfg: value = 0xa0000001
[   98.911086] [4294947186][spi][INFO][SPI_slic_check:L2683]======spi check zarlink======
[   98.914808] port_id = 2, meter_id = 0
[   98.922956] [4294947187][spi][INFO][SPI_slic_check:L2698]res_arr[0]:0xff
[   98.922956] res_arr[1]:0xff
[   98.926631] glb_cfg: value = 0xf0000002
[   98.936275] [4294947188][spi][INFO][SPI_slic_check:L2765][zarlink] unknown slic type!reset times:3
[   98.949291] [4294947189][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512======
[   98.957326] [4294947190][spi][INFO][SPI_Reset:L536]
[   98.957326]  SPI_Reset 2
[   99.081139] [4294947203][spi][INFO][SPI_slic_check:L2683]======spi check zarlink======
[   99.089307] [4294947203][spi][INFO][SPI_slic_check:L2698]res_arr[0]:0xff
[   99.089307] res_arr[1]:0xff
[   99.098972] [4294947204][spi][INFO][SPI_slic_check:L2765][zarlink] unknown slic type!reset times:4
[   99.108109] [4294947205][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512======
[   99.116116] [4294947206][spi][INFO][SPI_Reset:L536]
[   99.116116]  SPI_Reset 2
[   99.251275] [4294947220][spi][INFO][SPI_slic_check:L2683]======spi check zarlink======
[   99.259400] [4294947220][spi][INFO][SPI_slic_check:L2698]res_arr[0]:0xff
[   99.259400] res_arr[1]:0xff
[   99.272285] [4294947222][spi][INFO][SPI_slic_check:L2765][zarlink] unknown slic type!reset times:5
[   99.281431] param.data:
[   99.284184] [4294947223][spi][INFO][SPI_slic_check:L2654]set slic type: ===1===
[   99.291699] [4294947224][spi][INFO][SPI_slic_check:L2655]set interface_type: ===2===
[   99.299536] [4294947224][spi][INFO][SPI_slic_check:L2656]set slicid: ===0===
[   99.306848] [4294947225][spi][INFO][set_gpio_clocksrc:L2362]set gpio clocksrc,interface:2,devNum:1,gpio:1000
[   99.316913] [4294947226][spi][INFO][set_gpio_clocksrc:L2365]ISI
[   99.322984] [4294947227][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512======
[   99.330975] [4294947227][spi][INFO][SPI_Reset:L536]
[   99.330975]  SPI_Reset 2
[   99.451157] [4294947240][spi][INFO][SPI_slic_check:L2777]======spi check silicon======
[   99.459199] [4294947240][spi][INFO][SPI_slic_check:L2790]retVal:0, Part_num 0x0, Revision 0x0
[   99.467890] [4294947241][spi][ERR][SPI_slic_check:L2886][silicon] unknown slic type!reset times:1
[   99.476920] [4294947242][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512======
[   99.484910] [4294947243][spi][INFO][SPI_Reset:L536]
[   99.484910]  SPI_Reset 2
[   99.621136] [4294947257][spi][INFO][SPI_slic_check:L2777]======spi check silicon======
[   99.629220] [4294947257][spi][INFO][SPI_slic_check:L2790]retVal:0, Part_num 0x0, Revision 0x0
[   99.637911] [4294947258][spi][ERR][SPI_slic_check:L2886][silicon] unknown slic type!reset times:2
[   99.646928] [4294947259][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512======
[   99.654829] [4294947260][spi][INFO][SPI_Reset:L536]
[   99.654829]  SPI_Reset 2
[   99.781146] [4294947273][spi][INFO][SPI_slic_check:L2777]======spi check silicon======
[   99.789269] [4294947273][spi][INFO][SPI_slic_check:L2790]retVal:0, Part_num 0x0, Revision 0x0
[   99.797934] [4294947274][spi][ERR][SPI_slic_check:L2886][silicon] unknown slic type!reset times:3
[   99.807019] [4294947275][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512======
[   99.815042] [4294947276][spi][INFO][SPI_Reset:L536]
[   99.815042]  SPI_Reset 2
[   99.887907] qos_wrr_info: 0 0 0 0 0
[   99.891505] QDMA QoS: HW SP
[   99.943387] [4294947289][spi][INFO][SPI_slic_check:L2777]======spi check silicon======
[   99.951536] [4294947290][spi][INFO][SPI_slic_check:L2790]retVal:0, Part_num 0x0, Revision 0x0
[   99.960206] [4294947290][spi][ERR][SPI_slic_check:L2886][silicon] unknown slic type!reset times:4
[   99.969229] [4294947291][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512======
[   99.977231] [4294947292][spi][INFO][SPI_Reset:L536]
[   99.977231]  SPI_Reset 2
[  100.101091] [4294947305][spi][INFO][SPI_slic_check:L2777]======spi check silicon======
[  100.109115] [4294947305][spi][INFO][SPI_slic_check:L2790]retVal:0, Part_num 0x0, Revision 0x0
[  100.117807] [4294947306][spi][ERR][SPI_slic_check:L2886][silicon] unknown slic type!reset times:5
[  100.127115] param.data:
[  100.129718] [4294947307][spi][INFO][SPI_slic_check:L2654]set slic type: ===2===
[  100.137188] [4294947308][spi][INFO][SPI_slic_check:L2655]set interface_type: ===3===
[  100.145032] [4294947309][spi][INFO][SPI_slic_check:L2656]set slicid: ===0===
[  100.152232] [4294947310][spi][INFO][set_gpio_clocksrc:L2362]set gpio clocksrc,interface:3,devNum:1,gpio:1000
[  100.162220] [4294947311][spi][INFO][set_gpio_clocksrc:L2381]CSI
[  100.168272] [4294947311][spi][INFO][SPI_slic_check:L2895]======spi check lantiq======
[  100.176203] [4294947312][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512======
[  100.184188] [4294947313][spi][INFO][SPI_Reset:L536]
[  100.184188]  SPI_Reset 2
[  100.311534] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.317033] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.322532] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.328082] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.333600] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.339159] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.347689] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.353279] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.358764] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.364350] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.369841] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.375434] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.380928] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.386492] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.392003] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.397484] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.403039] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.408531] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.414096] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.419581] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.425150] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.430641] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.436212] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.441716] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.447260] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.452750] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.458298] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.463800] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.469286] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.474869] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.480363] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.485929] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.491437] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.496984] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.502481] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.508027] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.513544] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.519108] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.524690] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.530287] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.535830] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.541381] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.547044] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.552634] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.558215] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.563812] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.569399] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.574951] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.580512] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.586068] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.591713] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.597230] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.602883] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.608387] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.613975] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.619554] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.625112] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.630741] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.636302] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.641904] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.647426] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.653035] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.658567] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.664182] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.669692] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.675332] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.680854] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.686414] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.692031] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.697575] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.703205] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.708705] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.714302] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.719807] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.725424] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.730927] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.736571] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.742123] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.747781] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.753342] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.758868] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.764493] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.770004] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.775626] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.781154] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.786732] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.792282] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.797876] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.803474] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.809058] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.814629] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.820163] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.825746] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.831297] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.836881] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.842432] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.848025] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.853614] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.859260] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.864832] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.870420] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  100.875805] [4294947382][spi][INFO][lantiq_slic_verify_device:L2634][lantiq] unknown slic type!reset times:1
[  100.885918] [4294947383][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512======
[  100.893950] [4294947384][spi][INFO][SPI_Reset:L536]
[  100.893950]  SPI_Reset 2
[  101.021666] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.027242] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.032785] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.038342] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.043852] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.049410] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.054912] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.060459] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.065961] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.071465] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.077007] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.082518] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.088074] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.093578] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.099133] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.104635] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.110190] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.115692] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.121267] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.126756] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.132316] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.137801] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.143307] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.148861] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.154365] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.159921] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.168455] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.174029] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.179521] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.185101] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.190590] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.196154] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.201663] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.207209] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.212756] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.218243] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.223826] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.229321] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.234889] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.240379] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.245949] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.251456] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.256999] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.262512] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.268063] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.273572] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.279122] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.284632] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.290119] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.295686] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.301197] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.306750] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.312249] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.317804] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.323304] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.328854] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.334355] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.339903] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.345409] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.350964] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.356464] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.361970] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.367523] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.373020] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.378577] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.384088] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.389642] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.395148] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.400702] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.406204] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.411771] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.417258] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.425838] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.431357] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.436847] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.442632] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.448136] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.453731] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.459226] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.464794] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.470285] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.475857] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.481364] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.486917] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.492419] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.497967] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.503466] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.508955] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.514539] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.520034] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.525599] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.531100] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.536645] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.542147] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.547699] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.553198] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.558749] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.564251] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.569736] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.575242] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.580726] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.586118] [4294947453][spi][INFO][lantiq_slic_verify_device:L2634][lantiq] unknown slic type!reset times:2
[  101.596107] [4294947454][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512======
[  101.604015] [4294947455][spi][INFO][SPI_Reset:L536]
[  101.604015]  SPI_Reset 2
[  101.731537] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.737105] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.742628] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.748109] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.753671] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.759151] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.764696] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.770175] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.775724] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.781208] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.786769] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.792276] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.797826] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.803321] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.808872] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.814373] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.819859] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.825425] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.830918] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.836495] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.842007] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.847557] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.853056] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.858610] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.864114] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.869671] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.875178] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.880729] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.886235] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.891743] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.897295] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.902793] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.908341] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.913842] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.919392] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.924926] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.930478] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.936168] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.941782] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.947269] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.952830] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.958322] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.963825] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.969392] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.974903] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.980449] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.985953] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.991527] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  101.997019] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.002582] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.008069] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.013657] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.019149] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.024721] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.030210] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.035730] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.041301] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.046789] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.052344] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.057836] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.063404] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.068894] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.074461] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.079954] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.085520] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.091013] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.096581] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.102092] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.107580] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.113133] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.118617] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.124184] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.129674] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.135243] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.140734] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.146303] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.151810] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.157357] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.162854] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.168403] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.173901] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.179389] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.184955] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.190447] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.196014] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.201519] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.207069] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.212569] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.218124] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.223624] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.229177] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.234673] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.240224] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.245723] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.251226] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.256781] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.262296] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.267850] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.273362] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.278911] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.284404] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.289777] [4294947523][spi][INFO][lantiq_slic_verify_device:L2634][lantiq] unknown slic type!reset times:3
[  102.299759] [4294947524][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512======
[  102.307693] [4294947525][spi][INFO][SPI_Reset:L536]
[  102.307693]  SPI_Reset 2
[  102.431533] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.437035] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.442616] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.448107] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.453679] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.459172] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.464743] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.470232] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.475799] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.481598] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.487091] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.492662] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.498149] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.503716] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.509224] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.514801] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.520294] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.525859] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.531369] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.536915] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.542412] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.547959] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.553462] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.558947] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.564512] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.570005] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.575572] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.581071] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.586626] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.592132] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.597683] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.603182] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.608732] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.614236] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.619789] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.625292] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.630780] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.636344] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.641853] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.647401] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.652896] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.658443] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.663948] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.669496] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.674996] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.680546] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.686046] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.691612] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.697095] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.702584] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.708132] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.713639] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.719191] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.724696] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.730250] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.735752] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.741320] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.746809] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.752361] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.757853] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.763417] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.768904] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.774413] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.779964] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.785463] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.791013] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.796515] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.802082] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.807572] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.813130] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.818616] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.824231] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.829734] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.835328] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.840824] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.846373] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.851999] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.857508] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.863126] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.868638] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.874300] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.879809] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.885461] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.890964] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.896586] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.902135] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.907706] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.913295] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.918805] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.924473] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.929975] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.935622] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.941158] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.946758] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.952316] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.957907] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.963465] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.969028] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.974600] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.980172] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.985722] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  102.991051] [4294947593][spi][INFO][lantiq_slic_verify_device:L2634][lantiq] unknown slic type!reset times:4
[  103.001059] [4294947594][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512======
[  103.009083] [4294947595][spi][INFO][SPI_Reset:L536]
[  103.009083]  SPI_Reset 2
[  103.131614] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.137150] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.143018] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.148545] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.154109] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.159672] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.165185] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.170737] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.176238] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.181804] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.187285] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.192836] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.198323] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.203889] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.209382] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.214946] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.220430] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.225940] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.231508] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.236989] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.242545] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.248034] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.253601] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.259086] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.264660] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.270144] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.275711] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.281210] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.286761] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.292262] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.297751] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.303316] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.308808] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.314373] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.319858] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.325427] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.330918] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.336483] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.341994] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.347540] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.353036] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.358584] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.364095] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.369594] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.375218] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.380730] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.386345] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.391861] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.397485] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.403028] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.408596] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.414109] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.419660] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.425167] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.430720] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.436221] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.441724] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.447271] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.452767] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.458313] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.463815] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.469366] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.474866] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.480415] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.485916] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.491482] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.496963] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.502517] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.508001] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.513505] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.519063] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.524568] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.530122] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.535626] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.541196] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.546690] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.552255] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.557740] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.563309] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.568801] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.574365] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.579858] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.585360] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.590912] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.596411] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.601979] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.607467] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.613018] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.618504] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.624073] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.629565] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.635129] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.640614] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.646179] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.651688] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.657171] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.662724] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.668209] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.673775] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.679268] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.684834] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:
[  103.690149] [4294947663][spi][INFO][lantiq_slic_verify_device:L2634][lantiq] unknown slic type!reset times:5
[  103.700130] param.data:
[  103.709117] [spi_ctrl] exit
[  103.800856] PCM1 and SLIC Controller Module has been unloaded
[  111.216591] uledd: v1.0.1 started.
Enforcing UCI values, no boot marker found.
All init.d scripts started.
Please press Enter to activate this console.
<details> <summary>Aura E650 boot log</summary> ``` Resetting in 3 seconds.... resetting ... Secure key does not exist EN7523DRAMC V0.5 dram_type = 5, speed = 1866 Final Impdance Cal Result: OCDP:0x14, OCDN:0x17, ODTP:0x6, ODTN:0x6 DDR1866 PLL setting init [Dramc] PCDDR3 AC Timing update Fire MRW command... ModeReg.2, value.0x20 done Fire MRW command... ModeReg.3, value.0x0 done Fire MRW command... ModeReg.1, value.0x6 done Fire MRW command... ModeReg.0, value.0x1114 done Fire MRW command... ModeReg.1, value.0x86 done Fire MRW command... ModeReg.1, value.0x6 done Calculate size. DRAM size=512MB U-Boot 2023.07.02-OpenWrt-r24232-539228933c (Jan 08 2026 - 18:01:56 +0000) CPU: Airoha EN7562DT DRAM: 496 MiB Core: 12 devices, 8 uclasses, devicetree: fit spi-nand: spi_nand spinand@0: Micron SPI NAND was found. spi-nand: spi_nand spinand@0: 256 MiB, block size: 128 KiB, page size: 2048, OOB size: 128 + 0x000000000000-0x000010000000 : "spi-nand0" + 0x000000000000-0x000000100000 : "u-boot" + 0x000000100000-0x000010000000 : "ubi" Loading Environment from UBI... ubi0: default fastmap pool size: 100 ubi0: default fastmap WL pool size: 50 ubi0: attaching mtd2 ubi0: scanning is finished ubi0: attached mtd2 (name "ubi", size 255 MiB) ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048 ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096 ubi0: good PEBs: 2040, bad PEBs: 0, corrupted PEBs: 0 ubi0: user volume: 10, internal volumes: 1, max. volumes count: 128 ubi0: max/mean erase counter: 2/0, WL threshold: 4096, image sequence number: 1202214982 ubi0: available PEBs: 744, total reserved PEBs: 1296, PEBs reserved for bad PEB handling: 40 Read 126976 bytes from volume env1 to 9e6dff40 Read 126976 bytes from volume env2 to 9e6fef80 OK In: serial@1fbf0000 Out: serial@1fbf0000 Err: serial@1fbf0000 Net: eth0: en75xx-eth apply matching dtb: E655_R1 Hit any key to stop autoboot: 0 Saving Environment to UBI... UBI partition 'ubi' already selected Writing to redundant UBI... done OK Read 4 bytes from volume rootfs2 to 80500000 Detected squashfs. No size specified -> Using max size (3555328) Read 3555328 bytes from volume boot2 to 81800000 ## Loading kernel from FIT Image at 81800000 ... Using 'E655_R1' configuration Trying 'kernel-1' kernel subimage Description: ARM OpenWrt Linux-dev_iopsys_eu_airoha_linux_git-e4cbbae346be39a5e8fb90f87a6b370fd94fed2e Type: Kernel Image Compression: lzma compressed Data Start: 0x81802000 Data Size: 3429532 Bytes = 3.3 MiB Architecture: ARM OS: Linux Load Address: 0x80088000 Entry Point: 0x80088000 Hash algo: crc32 Hash value: 759cf56e Hash algo: sha1 Hash value: d71e2cd12f2cddc58739233136a5ba16ff9d4977 Verifying Hash Integrity ... crc32+ sha1+ OK ## Loading fdt from FIT Image at 81800000 ... Using 'E655_R1' configuration Trying 'fdt-E655_R1' fdt subimage Description: ARM OpenWrt E655_R1 device tree Type: Flat Device Tree Compression: uncompressed Data Start: 0x81b4c000 Data Size: 13701 Bytes = 13.4 KiB Architecture: ARM Load Address: 0x9e400000 Hash algo: crc32 Hash value: 1fa0f328 Hash algo: sha1 Hash value: 354cad95501d85a86411c1e0b5308e2a15766fea Verifying Hash Integrity ... crc32+ sha1+ OK Loading fdt from 0x81b4c000 to 0x9e400000 ## Loading fdt from FIT Image at 81800000 ... Trying 'fdt-tapir-image-version' fdt subimage Description: ARM OpenWrt tapir-image-version device tree overlay Type: Flat Device Tree Compression: uncompressed Data Start: 0x81b54000 Data Size: 478 Bytes = 478 Bytes Architecture: ARM Load Address: 0x9e406b84 Hash algo: crc32 Hash value: 20d32160 Hash algo: sha1 Hash value: e6ebb3709553ad91d242ef7cd8faf68abd9ac3ed Verifying Hash Integrity ... crc32+ sha1+ OK Booting using the fdt blob at 0x9e400000 Working FDT set to 9e400000 Uncompressing Kernel Image Loading Device Tree to 9e713000, end 9e7196c6 ... OK Working FDT set to 9e713000 Loading Device Tree to 9e709000, end 9e7126c6 ... OK Working FDT set to 9e709000 Starting kernel ... [ 0.000000] Booting Linux on physical CPU 0x0 [ 0.000000] Linux version 5.4.55 (dev@runner-zu3ysmoqv-project-348-concurrent-0) (gcc version 12.3.0 (OpenWrt GCC 12.3.0 r24232-539228933c)) #0 SMP Thu Jan 8 14:43:32 2026 [ 0.000000] CPU: ARMv7 Processor [410fd034] revision 4 (ARMv7), cr=10c5383d [ 0.000000] CPU: div instructions available: patching division code [ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache [ 0.000000] OF: fdt: Machine model: Aura-E655-DVT [ 0.000000] Malformed early option 'earlycon' [ 0.000000] Memory policy: Data cache writealloc [ 0.000000] psci: probing for conduit method from DT. [ 0.000000] psci: PSCIv1.1 detected in firmware. [ 0.000000] psci: Using standard PSCI v0.2 function IDs [ 0.000000] psci: MIGRATE_INFO_TYPE not supported. [ 0.000000] psci: SMC Calling Convention v1.0 [ 0.000000] [c08014ec]npu_pkt_buf_addr=9d109000:9d109000 [ 0.000000] npu_pkt_buffer memblock_alloc:9d109000,buf_size=1600000 percpu: Embedded 15 pages/cpu s29964 r8192 d23284 u61440 [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 129344 [ 0.000000] Kernel command line: console=ttyS0,115200n8 earlycon qdma_init=33 serdes_sel=3 mtdparts=spi_nand:1M(u-boot),-(ubi) ubi.mtd=ubi ubi.block=0,rootfs2 rootfstype=squashfs root=/dev/ubiblock0_5 ethaddr=00:E0:92:00:01:40 [ 0.000000] Dentry cache hash table entries: 65536 (order: 6, 262144 bytes, linear) [ 0.000000] Inode-cache hash table entries: 32768 (order: 5, 131072 bytes, linear) [ 0.000000] mem auto-init: stack:all, heap alloc:off, heap free:off [ 0.000000] Memory: 474540K/522496K available (7168K kernel code, 243K rwdata, 1564K rodata, 1024K init, 272K bss, 47956K reserved, 0K cma-reserved, 0K highmem) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1 [ 0.000000] rcu: Hierarchical RCU implementation. [ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies. [ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 64 [ 0.000000] GICv3: 256 SPIs implemented [ 0.000000] GICv3: 0 Extended SPIs implemented [ 0.000000] GICv3: Distributor has no Range Selector support [ 0.000000] GICv3: 16 PPIs implemented [ 0.000000] GICv3: no VLPI support, no direct LPI support [ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x09080000 [ 0.000000] random: get_random_bytes called from start_kernel+0x2c4/0x3f4 with crng_init=0 [ 0.000000] arch_timer: cp15 timer(s) running at 25.00MHz (virt). [ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x5c40939b5, max_idle_ns: 440795202646 ns [ 0.000004] sched_clock: 56 bits at 25MHz, resolution 40ns, wraps every 4398046511100ns [ 0.000011] Switching to timer-based delay loop, resolution 40ns [ 0.000108] Calibrating delay loop (skipped), value calculated using timer frequency.. 50.00 BogoMIPS (lpj=250000) [ 0.000118] pid_max: default: 32768 minimum: 301 [ 0.000238] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.000246] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.000863] CPU: Testing write buffer coherency: ok [ 0.001135] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000 [ 0.001512] Setting up static identity map for 0x80100000 - 0x80100060 [ 0.001594] rcu: Hierarchical SRCU implementation. [ 0.001729] gic-its@09020000: unable to locate ITS domain [ 0.001926] smp: Bringing up secondary CPUs ... [ 0.016765] GICv3: CPU1: found redistributor 1 region 0:0x090a0000 [ 0.016795] CPU1: thread -1, cpu 1, socket 0, mpidr 80000001 [ 0.016914] smp: Brought up 1 node, 2 CPUs [ 0.016928] SMP: Total of 2 processors activated (100.00 BogoMIPS). [ 0.016933] CPU: All CPU(s) started in SVC mode. [ 0.019546] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns [ 0.019566] futex hash table entries: 512 (order: 3, 32768 bytes, linear) [ 0.019690] pinctrl core: initialized pinctrl subsystem [ 0.019981] NET: Registered protocol family 16 [ 0.020243] DMA: preallocated 256 KiB pool for atomic coherent allocations [ 0.021432] No ATAGs?printk: console [pstore-1] enabled [ 0.225939] pstore: Registered ramoops as persistent store backend [ 0.226078] ramoops: using 0x80000@0x8ff80000, ecc: 16 [ 0.232406] [ 0.232406] l2c_sram_size:0x0 [ 0.235782] Initializing Ecnt Event Netlink Socket [ 0.235961] Initializing Econet Event Netlink Socket nl_sk = (ptrval) [ 0.239365] iommu: Default domain type: Translated [ 0.239660] usbcore: registered new interface driver usbfs [ 0.239766] usbcore: registered new interface driver hub [ 0.239955] usbcore: registered new device driver usb [ 0.240552] NET: Registered protocol family 8 [ 0.240699] NET: Registered protocol family 20 [ 0.241070] clocksource: Switched to clocksource arch_sys_counter [ 0.241805] thermal_sys: Registered thermal governor 'step_wise'NET: Registered protocol family 2 [ 0.242567] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 6144 bytes, linear) [ 0.242737] TCP established hash table entries: 4096 (order: 2, 16384 bytes, linear) [ 0.242912] TCP bind hash table entries: 4096 (order: 3, 32768 bytes, linear) [ 0.243044] TCP: Hash tables configured (established 4096 bind 4096) [ 0.243250] UDP hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.243405] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.243621] NET: Registered protocol family 1 [ 0.243788] PCI: CLS 0 bytes, default 64 [ 0.244130] SGMII_Version : A7523.00.06 [ 0.244249] sgmii: pon_sgmii_init [ 0.271068] enable! [ 0.271145] sgmii: sgmii_serdes_sel: exit! [ 0.271593] SGMII_Version : A7523.00.06 [ 0.271678] sgmii probe init [ 0.271861] sgmii:int_name: sgmii_pcie0 [ 0.271939] sgmii:int_id: 0 [ 0.272168] sgmii:int_register: inin! [ 0.272311] sgmii:sgmii->pcs1_base= e087b100 [ 0.272386] sgmii:sgmii->pcs2_base= e087da00 [ 0.272460] sgmii:sgmii->an_base= e0901000 [ 0.272596] sgmii:sgmii->ra_base= e0903600 [ 0.272669] sgmii:sgmii->phya_base= e0905c00 [ 0.272744] sgmii:int_register: exit! [ 0.272880] sgmii: init [ 0.272954] sgmii: sgmii_serdes_sel [ 0.273026] sgmii: pcie0: close! [ 0.273164] sgmii: sgmii_serdes_sel: exit! [ 0.273239] sgmii: init_exit [ 0.273313] sgmii probe init exit [ 0.273461] SGMII_Version : A7523.00.06 [ 0.273600] sgmii probe init [ 0.273712] sgmii:int_name: sgmii_pcie1 [ 0.273788] sgmii:int_id: 1 [ 0.274059] sgmii:int_register: inin! [ 0.274139] sgmii:sgmii->pcs1_base= e0907100 [ 0.274214] sgmii:sgmii->pcs2_base= e0909a00 [ 0.274350] sgmii:sgmii->an_base= e090b000 [ 0.274424] sgmii:sgmii->ra_base= e090d600 [ 0.274499] sgmii:sgmii->phya_base= e090fc00 [ 0.274635] sgmii:int_register: exit! [ 0.274708] sgmii: init [ 0.274782] sgmii: sgmii_serdes_sel [ 0.274917] sgmii: pcie1: close! [ 0.301072] sgmii: sgmii_serdes_sel: exit! [ 0.301152] sgmii: init_exit [ 0.301289] sgmii probe init exit [ 0.301460] SGMII_Version : A7523.00.06 [ 0.301536] sgmii probe init [ 0.301655] sgmii:int_name: sgmii_usb0 [ 0.301793] sgmii:int_id: 2 [ 0.302023] sgmii:int_register: inin! [ 0.302103] sgmii:sgmii->pcs1_base= e0911100 [ 0.302239] sgmii:sgmii->pcs2_base= e0913a00 [ 0.302314] sgmii:sgmii->an_base= e0915000 [ 0.302387] sgmii:sgmii->ra_base= e0917600 [ 0.302524] sgmii:sgmii->phya_base= e0919c00 [ 0.302597] sgmii:int_register: exit! [ 0.302732] sgmii: init [ 0.302806] sgmii: sgmii_serdes_sel [ 0.302879] sgmii: usb0: enable! [ 0.302956] sgmii: sgmii_serdes_sel: exit! [ 0.361061] sgmii: int_init called [ 0.391061] sgmii: sync_int exit [ 0.421060] sgmii: init_exit [ 0.421198] sgmii probe init exit [ 0.422436] irq-0: 109 irq-1: 110 [crypto_k] res->name:crypto_k@1fb70000 [ 0.422837] [crypto_k] res->start:0x1fb70000 === [ 0.422975] [crypto_k] res->end:0x1fb70803 === [ 0.423050] [crypto_k] ecnt_crypto_k->base:0xe0973000 [ 0.423511] test_uc:(ptrval) test_c:(ptrval) cpu_top->base:(ptrval) [ 0.423673] [apb_timer] ecnt_timer_drv_probe [ 0.423823] [timer] ecnt_timer->irq: 79 [ 0.423959] [timer] res->name:apb_timer1@1fbf0100 [ 0.424253] [ 0.424253] i2c_slave init(ecnt_i2c_slave_drv_probe) done [ 0.424669] 7523 Thermal Sensor address probe done [ 0.424750] iddq = 51 [ 0.424897] [thermal] thermal_phy->irq: 119 [ 0.425139] [i2s] ecnt_i2s_drv_probe [ 0.426001] workingset: timestamp_bits=14 max_order=17 bucket_order=3 [ 0.431268] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.431468] jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc. [ 0.462100] io scheduler mq-deadline registered [ 0.462188] io scheduler kyber registered [ 0.463103] en7523-pctl_probe 1fa20210.pinctrl: initialised Airoha EN7523 pinctrl driver [ 0.463548] GPIO line 25 (DECT on) hogged as output/high [ 0.463978] gpio gpiochip1: (1fbf0270.gpio): detected irqchip that is shared with multiple gpiochips: please fix the driver. [ 0.464435] PCIe driver version: 7523.0.20210201 [ 0.464530] PCIe ref clk init. [ 0.465749] ===EN7523 PCIe initmtk-pcie 1fa91000.pcie: pcie rc 0 linkup success [ 0.823922] mtk-pcie 1fa91000.pcie: pcie rc 1 linkup success [ 0.824062] [ 0.824062] ===============PCIe check===tmp_reg=========81014c3=========== [ 0.824261] mtk-pcie 1fa91000.pcie: PCI host bridge to bus 0000:00 [ 0.824408] pci_bus 0000:00: root bus resource [??? 0x00000000 flags 0x0] [ 0.824549] pci_bus 0000:00: root bus resource [mem 0x20000000-0x2fffffff] [ 0.824628] pci_bus 0000:00: root bus resource [bus 00-ff] [ 0.824796] pci 0000:00:00.0: [14c3:0810] type 01 class 0x060400 [ 0.825184] pci 0000:00:01.0: [14c3:0811] type 01 class 0x060400 [ 0.826375] PCI: bus0: Fast back to back transfers disabled [ 0.826462] pci 0000:00:00.0: bridge configuration invalid ([bus 00-00]), reconfiguring [ 0.826612] pci 0000:00:01.0: bridge configuration invalid ([bus 00-00]), reconfiguring [ 0.826965] pci 0000:01:00.0: [14c3:7915] type 00 class 0x000280 [ 0.827326] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x000fffff 64bit pref] [ 0.827570] pci 0000:01:00.0: reg 0x18: [mem 0x00000000-0x00003fff 64bit pref] [ 0.827751] pci 0000:01:00.0: reg 0x20: [mem 0x00000000-0x00000fff 64bit pref] [ 0.828532] pci 0000:01:00.0: supports D1 D2 [ 0.828610] pci 0000:01:00.0: PME# supported from D0 D1 D2 D3hot D3cold [ 0.828885] pci 0000:01:00.0: 2.000 Gb/s available PCIe bandwidth, limited by 2.5 GT/s x1 link at 0000:00:00.0 (capable of 4.000 Gb/s with 5 GT/s x1 link) [ 0.830097] PCI: bus1: Fast back to back transfers disabled [ 0.830244] pci_bus 0000:01: busn_res: [bus 01-ff] end is updated to 01 [ 0.830526] pci 0000:02:00.0: [14c3:7915] type 00 class 0x000280 [ 0.830948] pci 0000:02:00.0: reg 0x10: [mem 0x00000000-0x000fffff 64bit pref] [ 0.831157] pci 0000:02:00.0: reg 0x18: [mem 0x00000000-0x00003fff 64bit pref] [ 0.831402] pci 0000:02:00.0: reg 0x20: [mem 0x00000000-0x00000fff 64bit pref] [ 0.832189] pci 0000:02:00.0: supports D1 D2 [ 0.832268] pci 0000:02:00.0: PME# supported from D0 D1 D2 D3hot D3cold [ 0.832544] pci 0000:02:00.0: 2.000 Gb/s available PCIe bandwidth, limited by 2.5 GT/s x1 link at 0000:00:01.0 (capable of 4.000 Gb/s with 5 GT/s x1 link) [ 0.833771] PCI: bus2: Fast back to back transfers disabled [ 0.833856] pci_bus 0000:02: busn_res: [bus 02-ff] end is updated to 02 [ 0.834020] pci 0000:00:00.0: BAR 8: assigned [mem 0x20000000-0x201fffff] [ 0.834163] pci 0000:00:01.0: BAR 8: assigned [mem 0x20200000-0x203fffff] [ 0.834246] pci 0000:01:00.0: BAR 0: assigned [mem 0x20000000-0x200fffff 64bit pref] [ 0.834469] pci 0000:01:00.0: BAR 2: assigned [mem 0x20100000-0x20103fff 64bit pref] [ 0.834691] pci 0000:01:00.0: BAR 4: assigned [mem 0x20104000-0x20104fff 64bit pref] [ 0.834851] pci 0000:00:00.0: PCI bridge to [bus 01] [ 0.834996] pci 0000:00:00.0: bridge window [mem 0x20000000-0x201fffff] [ 0.835084] pci 0000:02:00.0: BAR 0: assigned [mem 0x20200000-0x202fffff 64bit pref] [ 0.835307] pci 0000:02:00.0: BAR 2: assigned [mem 0x20300000-0x20303fff 64bit pref] [ 0.835530] pci 0000:02:00.0: BAR 4: assigned [mem 0x20304000-0x20304fff 64bit pref] [ 0.835687] pci 0000:00:01.0: PCI bridge to [bus 02] [ 0.835829] pci 0000:00:01.0: bridge window [mem 0x20200000-0x203fffff] [ 0.838013] [ 0.838013] mt7512_pcie_fixup: 0x1438 = 20000015 [ 0.838013] mt7512_pcie_rc0_retrain: 80 = 0145dc12 80 = 01608c12 [ 0.838013] RC0 Link Traing Result: 10120008 [ 0.838013] ===========RC0 set conf space INTx============= [ 1.852278] [ 1.852278] mt7512_pcie_fixup: 0x2438 = 20200015 [ 1.852278] mt7512_pcie_rc1_retrain: 80 = 0145dc12 80 = 01608c12 [ 1.852278] RC1 Link Traing Result: 10120008 [ 1.852278] ===========RC1 set conf space INTx============= [ 2.869522] Serial: 8250/16550 driver, 2 ports, IRQ sharing disabled [ 2.870303] printk: console [ttyS0] disabled [ 2.870440] 1fbf0000.serial: ttyS0 at MMIO 0x1fbf0000 (irq = 94, base_baud = 115200) is a Airoha 16550 [ 4.054374] printk: console [ttyS0] enabled [ 4.059069] 1fbf0300.serial: ttyS1 at MMIO 0x1fbf0300 (irq = 95, base_baud = 460800) is a Airoha 16550 [ 4.069037] data output always not ready [ 4.073365] airoha-trng 1faa1000.airoha_trng: [v1.01] registerd TRNG driver [ 4.080617] random: fast init done [ 4.084245] random: crng init done [ 4.094858] brd: module loaded [ 4.102384] loop: module loaded [ 4.105885] en75xx-spi 1fa10000.spi_controller: found spi controller at 0x1fa10000 [ 4.113687] en75xx-spi 1fa10000.spi_controller: found nfi controller at 0x1fa11000 [ 4.121921] spi-nand spi0.0: Micron SPI NAND was found. [ 4.127225] spi-nand spi0.0: 256 MiB, block size: 128 KiB, page size: 2048, OOB size: 128 [ 4.135604] 2 cmdlinepart partitions found on MTD device spi_nand [ 4.141789] Creating 2 MTD partitions on "spi_nand": [ 4.146885] 0x000000000000-0x000000100000 : "u-boot" [ 4.153229] 0x000000100000-0x000010000000 : "ubi" [ 4.371503] libphy: Fixed MDIO Bus: probed [ 4.375677] PPP generic driver version 2.4.2 [ 4.380072] PPP BSD Compression module registered [ 4.384876] PPP Deflate Compression module registered [ 4.389995] NET: Registered protocol family 24 [ 4.394780] USB driver version: 7523.4.20210825 [ 4.401383] port 0 u2_slew_rate_cal_7523 [ 4.407368] FM_OUT value = 113(0x00000071) [ 4.412598] SR calibration value = 5 [ 4.416234] port 1 u2_slew_rate_cal_7523 [ 4.421280] FM_OUT value = 113(0x00000071) [ 4.426444] SR calibration value = 5 [ 7.461073] xhci-hcd 1fab0000.xhci: xHCI Host Controller [ 7.466540] xhci-hcd 1fab0000.xhci: new USB bus registered, assigned bus number 1 [ 7.574301] xhci-hcd 1fab0000.xhci: irq 111, io mem 0x1fab0000 [ 7.580738] hub 1-0:1.0: USB hub found [ 7.584624] hub 1-0:1.0: 2 ports detected [ 7.589088] xhci-hcd 1fab0000.xhci: xHCI Host Controller [ 7.594513] xhci-hcd 1fab0000.xhci: new USB bus registered, assigned bus number 2 [ 7.602213] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM. [ 7.610736] hub 2-0:1.0: USB hub found [ 7.614673] hub 2-0:1.0: 1 port detected [ 7.619066] usbcore: registered new interface driver cdc_acm [ 7.624891] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters [ 7.633041] usbcore: registered new interface driver usbserial_generic [ 7.639715] usbserial: USB Serial support registered for generic [ 7.645814] usbcore: registered new interface driver cypress_m8 [ 7.651883] usbserial: USB Serial support registered for DeLorme Earthmate USB [ 7.659244] usbserial: USB Serial support registered for HID->COM RS232 Adapter [ 7.666651] usbserial: USB Serial support registered for Nokia CA-42 V2 Adapter [ 7.674113] usbcore: registered new interface driver ftdi_sio [ 7.679936] usbserial: USB Serial support registered for FTDI USB Serial Device [ 7.687696] i2c-mt7621 1fbf8000.mtk_i2c: I2C reset failed! [ 7.693385] i2c-mt7621 1fbf8000.mtk_i2c: clock 400 kHz [ 7.698799] watchdog: watchdog@0,0: driver supplied timeout (300) out of range [ 7.706551] device-mapper: ioctl: 4.41.0-ioctl (2019-09-16) initialised: dm-devel@redhat.com [ 7.715734] hidraw: raw HID events driver (C) Jiri Kosina [ 7.721407] usbcore: registered new interface driver usbhid [ 7.727054] usbhid: USB HID core driver [ 7.731839] IPv4 over IPsec tunneling driver [ 7.736675] ipt_CLUSTERIP: ClusterIP Version 0.8 loaded successfully [ 7.743222] Initializing XFRM netlink socket [ 7.747959] NET: Registered protocol family 10 [ 7.753350] Segment Routing with IPv6 [ 7.757324] sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver [ 7.764256] NET: Registered protocol family 17 [ 7.768858] NET: Registered protocol family 15 [ 7.773467] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this. [ 7.786571] 8021q: 802.1Q VLAN Support v1.8 [ 7.790870] sctp: Hash tables configured (bind 512/512) [ 7.796485] lib80211: common routines for IEEE802.11 drivers [ 7.802320] Registering SWP/SWPB emulation handler [ 7.809776] ubi0: attaching mtd1 [ 8.981156] ubi0: scanning is finished [ 8.994481] ubi0: attached mtd1 (name "ubi", size 255 MiB) [ 9.000109] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes [ 9.007139] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048 [ 9.014004] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096 [ 9.021097] ubi0: good PEBs: 2040, bad PEBs: 0, corrupted PEBs: 0 [ 9.027261] ubi0: user volume: 10, internal volumes: 1, max. volumes count: 128 [ 9.034709] ubi0: max/mean erase counter: 2/0, WL threshold: 4096, image sequence number: 1202214982 [ 9.043978] ubi0: available PEBs: 746, total reserved PEBs: 1294, PEBs reserved for bad PEB handling: 40 [ 9.053952] ubi0: background thread "ubi_bgt0d" started, PID 71 [ 9.066181] block ubiblock0_5: created from ubi0:5(rootfs2) [ 9.075282] VFS: Mounted root (squashfs filesystem) readonly on device 253:0. [ 9.083646] Freeing unused kernel memory: 1024K [ 9.111260] Run /sbin/init as init process [ 9.393864] init: Console is alive [ 9.397560] init: - watchdog - [ 10.465201] kmodloader: loading kernel modules from /etc/modules-boot.d/* [ 10.500280] bootr_en75xx: loading out-of-tree module taints kernel. [ 10.507182] airoha-bootr 1fb00240.bootr: boot reason: POR [ 10.521660] tcledctrl_stub - init [ 10.529192] SCSI subsystem initialized [ 10.548827] usbcore: registered new interface driver usb-storage [ 10.560560] kmodloader: done loading kernel modules from /etc/modules-boot.d/* [ 10.581542] init: - preinit - opconf: do_opconf_userconf Failed to connect to ubus Error: could not find property iowrt_image_version. [ 13.901657] block ubiblock0_4: created from ubi0:4(rootfs1) [ 13.962207] /dev/ubiblock0_4: Can't open blockdev mount: mounting /dev/ubiblock0_4 on /tmp/other_bank_mount failed: No such file or directory opconf: other bank version is opconf: Unable to determine other bank version, but UBI flash detected - proceeding with migration [ 14.287901] UBIFS (ubi0:7): default file-system created [ 14.293941] UBIFS (ubi0:7): Mounting in unauthenticated mode [ 14.299800] UBIFS (ubi0:7): background thread "ubifs_bgt0_7" started, PID 819 [ 14.357223] UBIFS (ubi0:7): UBIFS: mounted UBI device 0, volume 7, name "overlay2" [ 14.364896] UBIFS (ubi0:7): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 14.374945] UBIFS (ubi0:7): FS size: 32378880 bytes (30 MiB, 255 LEBs), journal size 1650688 bytes (1 MiB, 13 LEBs) [ 14.385514] UBIFS (ubi0:7): reserved for root: 1529334 bytes (1493 KiB) [ 14.392262] UBIFS (ubi0:7): media format: w5/r0 (latest is w5/r0), UUID 4051D758-8C8D-4C4E-AC8F-F088BE28F6AA, small LPT model opconf: Mounted current overlay partition opconf: backup file /tmp/opconf_overlay/data/upper/sysupgrade.tgz does not exist [ 14.421448] UBIFS (ubi0:7): un-mount UBI device 0 [ 14.426250] UBIFS (ubi0:7): background thread "ubifs_bgt0_7" stops opconf: Unmounted current overlay Upgrade from U-Boot detected. Removing usr_data content! [ 15.005805] UBIFS (ubi0:7): Mounting in unauthenticated mode [ 15.029634] UBIFS (ubi0:7): background thread "ubifs_bgt0_7" started, PID 940 [ 15.094125] UBIFS (ubi0:7): UBIFS: mounted UBI device 0, volume 7, name "overlay2" [ 15.101865] UBIFS (ubi0:7): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 15.111855] UBIFS (ubi0:7): FS size: 32378880 bytes (30 MiB, 255 LEBs), journal size 1650688 bytes (1 MiB, 13 LEBs) [ 15.122425] UBIFS (ubi0:7): reserved for root: 1529334 bytes (1493 KiB) [ 15.129167] UBIFS (ubi0:7): media format: w5/r0 (latest is w5/r0), UUID 4051D758-8C8D-4C4E-AC8F-F088BE28F6AA, small LPT model Wiping overlay (reason: upgrade from U-Boot). [ 15.236695] UBIFS (ubi0:7): un-mount UBI device 0 [ 15.241519] UBIFS (ubi0:7): background thread "ubifs_bgt0_7" stops [ 15.454266] UBIFS (ubi0:7): default file-system created [ 15.460182] UBIFS (ubi0:7): Mounting in unauthenticated mode [ 15.466110] UBIFS (ubi0:7): background thread "ubifs_bgt0_7" started, PID 1001 [ 15.523578] UBIFS (ubi0:7): UBIFS: mounted UBI device 0, volume 7, name "overlay2" [ 15.531249] UBIFS (ubi0:7): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 15.541300] UBIFS (ubi0:7): FS size: 32378880 bytes (30 MiB, 255 LEBs), journal size 1650688 bytes (1 MiB, 13 LEBs) [ 15.551868] UBIFS (ubi0:7): reserved for root: 1529334 bytes (1493 KiB) [ 15.558612] UBIFS (ubi0:7): media format: w5/r0 (latest is w5/r0), UUID E471ACE3-6E0B-4441-AD8D-A9309BE8425A, small LPT model [ 15.920690] procd: - early - [ 15.923876] procd: - watchdog - Failed to connect to ubus [ 16.511262] procd: - watchdog - [ 16.514778] procd: - ubus - [ 16.694991] procd: - init - [ 16.856556] tccicmd: module license 'unspecified' taints kernel. [ 16.862755] Disabling lock debugging due to kernel taint [ 16.868803] tccicmd V1.1.0.0 (2026:01:08-17:59:06) [ 16.891115] (gdump_mode_sel): GDUMP sel has switch to 3 [ 16.896579] ECNT_HOOK_ERROR occur. ECNT_API_XPON_MODE_GET:215 [ 16.913790] ifc_set_action: cpu:1, nbq:1 [ 16.917882] ifc_set_action: cpu:1, nbq:1 [ 16.921960] ifc_set_action: cpu:1, nbq:2 [ 16.925962] ifc_set_action: cpu:1, nbq:1 [ 16.930024] ifc_set_action: cpu:1, nbq:1 [ 16.934043] ifc_set_action: cpu:1, nbq:1 [ 16.938050] ifc_set_action: cpu:1, nbq:1 [ 16.942136] ifc_set_action: cpu:1, nbq:2 [ 16.946168] ifc_set_action: cpu:1, nbq:2 [ 16.950184] ifc_set_action: cpu:1, nbq:1 [ 16.954297] ifc_set_action: cpu:1, nbq:1 [ 16.958314] ifc_set_action: cpu:1, nbq:1 [ 16.962348] ifc_set_action: cpu:1, nbq:1 [ 16.966427] ifc_set_action: cpu:1, nbq:3 [ 16.970444] ifc_set_action: cpu:1, nbq:1 [ 16.974480] ifc_set_action: cpu:1, nbq:1 [ 16.978560] ifc_set_action: cpu:1, nbq:1 [ 16.982601] ifc_set_action: cpu:1, nbq:1 [ 16.986680] ifc_set_action: cpu:1, nbq:1 [ 16.990697] ifc_set_action: cpu:1, nbq:1 [ 16.994752] ifc_set_action: cpu:1, nbq:7 [ 16.999269] ifc_set_action: cpu:1, nbq:8 [ 17.016744] macType = 0 [ 17.019307] flashQdmaInit = 0x33 [ 17.050335] gpQdmaPriv->hwFwdBuffAddr = 0x1f6f0840, hwFwdBuffAddr = 0xdf6f0840 [ 17.117836] copy NPU binary:/lib/firmware/npu_rv32.bin(69384 Bytes) to 0xe0f80000 [ 17.174609] copy NPU binary:/lib/firmware/npu_data.bin(760 Bytes) to 0xe0c00000 [C0]core freq at 333000000 Hz [C0]timer_init: Timer clk is running at 125 Mhz [C0]npu_gre_tunnel_tx_header_init L15 gre_tx_head_addr[0]=0x8400351c [C0]npu_gre_tunnel_tx_header_init L15 gre_tx_head_addr[1]=0x84003544 [C0][NPU] ba_node_init... [C0]baNode_array_init [C0]counter_init:2 [C0][NPU] queue_mutex_init... [C1]core1_main [C2]timer_isr Store Value 1e903000, val[C2]core2_main [C2]do npu_enq_deq_init [C3]core3_main [C3]core3_main for npu tunnel offload v21 [C3]npu bridge buf init sucess [ 17.586531] [c0801478]npu_pkt_buf_addr=9d109000 [ 17.591238] npu_wifi_offload_get_pkt_buf_addr=9d109000 [ 17.596467] [c0801478]npu_pkt_buf_addr=9d109000 [C0]wifi_mail_data->wifi_mail_private.npuPktBufAddr=9d109000, 9d109000 [C0](core0_main) just return, because QDMA driver for ARM is not ready [ 17.627833] ether.c:v1.00-NAPI 29.Mar.2015 [ 17.632118] eth0 (uninitialized): netif_napi_add() called with weight 128 [ 17.639074] eth0: FE MAC Ethernet address: 00:E0:92:00:01:40 [ 17.648496] Use Internal switch ,type 10 [ 17.658329] netlink init [ 17.666927] tcPhyVerLookUp 2400 94A1 [ 17.670680] 7523 Ge, [ 17.673230] , port_num = 0, ephy_addr = 9, ephy_addr_base = 0x9 [ 17.689336] GE Rext AnaCal Done! (5)(0x25) [ 17.694555] GE Rext AnaCal Done! (5)(0x25) [ 17.713999] GE R45 AnaCal zcal_idx(before table) (dec: 45) (hex: 0x2d) [ 17.721037] GE R45 AnaCal Done! (cnt:13)(after table) ([7][6:0]:0x51) ([6:0]:0xd1) [ 17.741194] GE R45 AnaCal zcal_idx(before table) (dec: 43) (hex: 0x2b) [ 17.748156] GE R45 AnaCal Done! (cnt:11)(after table) ([7][6:0]:0x56) ([6:0]:0xd6) [ 17.767360] GE R45 AnaCal zcal_idx(before table) (dec: 42) (hex: 0x2a) [ 17.774457] GE R45 AnaCal Done! (cnt:10)(after table) ([7][6:0]:0x58) ([6:0]:0xd8) [ 17.793701] GE R45 AnaCal zcal_idx(before table) (dec: 42) (hex: 0x2a) [ 17.800731] GE R45 AnaCal Done! (cnt:10)(after table) ([7][6:0]:0x58) ([6:0]:0xd8) [ 17.817359] GE Tx offset AnaCal Done! (5)(0x24) [ 17.826247] GE Tx offset AnaCal Done! (2)(0x21) [ 17.837057] GE Tx offset AnaCal Done! (4)(0x23) [ 17.844978] GE Tx offset AnaCal Done! (1)(0x1) [ 17.869439] GE Tx amp AnaCal Done! (15) (0x2f) [ 17.892825] GE Tx amp AnaCal Done! (16) (0x30) [ 17.912380] GE Tx amp AnaCal Done! (12) (0x2c) [ 17.934752] GE Tx amp AnaCal Done! (15) (0x2f) [ 17.956605] [tcPhyInit] in [tcPhyInit] out , r31 = (9, 0x0) [ 18.018337] tcPhyVerLookUp 2400 94A1 [ 18.022105] 7523 Ge, [ 18.024593] , port_num = 1, ephy_addr = 10, ephy_addr_base = 0x9 [ 18.046686] GE R45 AnaCal zcal_idx(before table) (dec: 43) (hex: 0x2b) [ 18.053679] GE R45 AnaCal Done! (cnt:11)(after table) ([7][6:0]:0x56) ([6:0]:0xd6) [ 18.071949] GE R45 AnaCal zcal_idx(before table) (dec: 41) (hex: 0x29) [ 18.078981] GE R45 AnaCal Done! (cnt:9)(after table) ([7][6:0]:0x5b) ([6:0]:0xdb) [ 18.096220] GE R45 AnaCal zcal_idx(before table) (dec: 40) (hex: 0x28) [ 18.103276] GE R45 AnaCal Done! (cnt:8)(after table) ([7][6:0]:0x5e) ([6:0]:0xde) [ 18.120580] GE R45 AnaCal zcal_idx(before table) (dec: 40) (hex: 0x28) [ 18.127583] GE R45 AnaCal Done! (cnt:8)(after table) ([7][6:0]:0x5e) ([6:0]:0xde) [ 18.143172] GE Tx offset AnaCal Done! (4)(0x23) [ 18.152013] GE Tx offset AnaCal Done! (2)(0x2) [ 18.161793] GE Tx offset AnaCal Done! (3)(0x3) [ 18.169624] GE Tx offset AnaCal Done! (1)(0x1) [ 18.188619] GE Tx amp AnaCal Done! (9) (0x29) [ 18.202489] GE Tx amp AnaCal Done! (6) (0x26) [ 18.219104] GE Tx amp AnaCal Done! (9) (0x29) [ 18.236860] GE Tx amp AnaCal Done! (10) (0x2a) [ 18.258745] [tcPhyInit] in [tcPhyInit] out , r31 = (10, 0x0) [ 18.320574] tcPhyVerLookUp 2400 94A1 [ 18.324347] 7523 Ge, [ 18.326840] , port_num = 2, ephy_addr = 11, ephy_addr_base = 0x9 [ 18.347951] GE R45 AnaCal zcal_idx(before table) (dec: 42) (hex: 0x2a) [ 18.354935] GE R45 AnaCal Done! (cnt:10)(after table) ([7][6:0]:0x58) ([6:0]:0xd8) [ 18.373247] GE R45 AnaCal zcal_idx(before table) (dec: 41) (hex: 0x29) [ 18.380280] GE R45 AnaCal Done! (cnt:9)(after table) ([7][6:0]:0x5b) ([6:0]:0xdb) [ 18.398467] GE R45 AnaCal zcal_idx(before table) (dec: 41) (hex: 0x29) [ 18.405518] GE R45 AnaCal Done! (cnt:9)(after table) ([7][6:0]:0x5b) ([6:0]:0xdb) [ 18.424626] GE R45 AnaCal zcal_idx(before table) (dec: 42) (hex: 0x2a) [ 18.431623] GE R45 AnaCal Done! (cnt:10)(after table) ([7][6:0]:0x58) ([6:0]:0xd8) [ 18.446337] GE Tx offset AnaCal Done! (3)(0x22) [ 18.455209] GE Tx offset AnaCal Done! (2)(0x21) [ 18.464128] GE Tx offset AnaCal Done! (2)(0x21) [ 18.472065] GE Tx offset AnaCal Done! (1)(0x1) [ 18.487269] GE Tx amp AnaCal Done! (5) (0x25) [ 18.499324] GE Tx amp AnaCal Done! (4) (0x24) [ 18.519816] GE Tx amp AnaCal Done! (13) (0x2d) [ 18.536612] GE Tx amp AnaCal Done! (9) (0x29) [ 18.558370] [tcPhyInit] in [tcPhyInit] out , r31 = (11, 0x0) [ 18.620184] tcPhyVerLookUp 2400 94A1 [ 18.623974] 7523 Ge, [ 18.626510] , port_num = 3, ephy_addr = 12, ephy_addr_base = 0x9 [ 18.649638] GE R45 AnaCal zcal_idx(before table) (dec: 44) (hex: 0x2c) [ 18.656690] GE R45 AnaCal Done! (cnt:12)(after table) ([7][6:0]:0x53) ([6:0]:0xd3) [ 18.675915] GE R45 AnaCal zcal_idx(before table) (dec: 42) (hex: 0x2a) [ 18.683056] GE R45 AnaCal Done! (cnt:10)(after table) ([7][6:0]:0x58) ([6:0]:0xd8) [ 18.702320] GE R45 AnaCal zcal_idx(before table) (dec: 42) (hex: 0x2a) [ 18.709320] GE R45 AnaCal Done! (cnt:10)(after table) ([7][6:0]:0x58) ([6:0]:0xd8) [ 18.728576] GE R45 AnaCal zcal_idx(before table) (dec: 42) (hex: 0x2a) [ 18.735566] GE R45 AnaCal Done! (cnt:10)(after table) ([7][6:0]:0x58) ([6:0]:0xd8) [ 18.750265] GE Tx offset AnaCal Done! (3)(0x22) [ 18.759207] GE Tx offset AnaCal Done! (2)(0x21) [ 18.769061] GE Tx offset AnaCal Done! (3)(0x22) [ 18.778896] GE Tx offset AnaCal Done! (3)(0x22) [ 18.798012] GE Tx amp AnaCal Done! (9) (0x29) [ 18.820265] GE Tx amp AnaCal Done! (15) (0x2f) [ 18.841780] GE Tx amp AnaCal Done! (14) (0x2e) [ 18.862314] GE Tx amp AnaCal Done! (13) (0x2d) [ 18.884185] [tcPhyInit] in [tcPhyInit] out , r31 = (12, 0x0) [ 18.956539] macType = 0 [ 18.959064] flashQdmaInit = 0x33 [ 18.965973] gpQdmaPriv->hwFwdBuffAddr = 0x1f2f0840, hwFwdBuffAddr = 0xdf2f0840 [ 18.976337] fe resource init start [ 18.984984] whnat_module_init(): module init and register callback for whnat [ 18.992217] mt_wlan_hook_register:46 !!!!! [ 18.996416] mt_wlan_hook_register:50 !!!!! [ 19.000676] mt_wlan_hook_register:53 ops_priority=0 cur_priority=0 !!!!! [ 19.007501] mt_wlan_hook_register:66 !!!!! [ 19.011810] create whnat_ctrl ok!!! [ 19.015452] wed_slot_map_get(): assign slot_id:0 for entry: 0! [ 19.021483] wed_slot_map_get(): assign slot_id:1 for entry: 1! [ 19.038777] Ralink HW NAT Module Enabled [ 19.045989] you need to modify struct FoeEntryExtKernel in soft_dma.h when you modifyied struct FoeEntryExt!SRAM_FOE_NUM=7, means PPE_FOE_NUM=512 [ 19.059517] HWNAT Module enabled with Type:L2B/IPv4/IPv6/DS-LITE/6RD, foeSize:64B, sram_foeNum:512, dram_foeNum:16384 [ 19.070449] IP check use Black List [ 19.076922] EN7523 PPE SRAM HW default setting is 512 at 64byte, no need to set by sw [ 19.097124] tso_lan: tso_v2.c [201]: dscpDmaAddr =9a420000 [ 19.104340] tso_lan: tso_v2.c [263]: diPtr->dscpIdx = 0 [ 19.109755] tso_lan: tso_v2.c [263]: diPtr->dscpIdx = 0 [ 19.115122] tso_proc_init. [ 19.129889] eth0: starting interface. [ 19.133776] netif_start_queue [ 19.893276] UBIFS (ubi0:9): Mounting in unauthenticated mode [ 19.992308] UBIFS (ubi0:9): UBIFS: mounted UBI device 0, volume 9, name "boarddata", R/O mode [ 20.000979] UBIFS (ubi0:9): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 20.011052] UBIFS (ubi0:9): FS size: 3047424 bytes (2 MiB, 24 LEBs), journal size 1015809 bytes (0 MiB, 6 LEBs) [ 20.021281] UBIFS (ubi0:9): reserved for root: 143937 bytes (140 KiB) [ 20.027793] UBIFS (ubi0:9): media format: w5/r0 (latest is w5/r0), UUID AB3DBFA4-E1A0-4C49-BA75-320B76F274E0, small LPT model [ 20.103866] UBIFS (ubi0:99): default file-system created [ 20.109921] UBIFS (ubi0:99): Mounting in unauthenticated mode [ 20.133860] UBIFS (ubi0:99): background thread "ubifs_bgt0_99" started, PID 1973 [ 20.184283] UBIFS (ubi0:99): UBIFS: mounted UBI device 0, volume 99, name "usr_data" [ 20.192207] UBIFS (ubi0:99): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 20.202355] UBIFS (ubi0:99): FS size: 15618048 bytes (14 MiB, 123 LEBs), journal size 1015809 bytes (0 MiB, 6 LEBs) [ 20.212931] UBIFS (ubi0:99): reserved for root: 737678 bytes (720 KiB) [ 20.219531] UBIFS (ubi0:99): media format: w5/r0 (latest is w5/r0), UUID 1B9E3FE3-AA19-4BCF-BA67-3C77899A4105, small LPT model [ 21.563511] ecnt_wifi_eeprom: band0 uses art eeprom [ 21.632543] ecnt_wifi_eeprom: Updating macaddr field in /tmp/wifi_band0_eeprom.bin [ 21.680465] ecnt_wifi_eeprom: band1 uses art eeprom [ 21.752211] ecnt_wifi_eeprom: Updating macaddr field in /tmp/wifi_band1_eeprom.bin crond[2192]: crond (busybox 1.36.1) started, log level 5 [ 24.171092] monitor value xxxxxxx [ 54.395483] kmodloader: loading kernel modules from /etc/modules.d/* [ 54.437863] NET: Registered protocol family 38 [ 54.482798] tun: Universal TUN/TAP device driver, 1.6 [ 54.497661] l2tp_core: L2TP core driver, V2.0 [ 54.503918] l2tp_netlink: L2TP netlink interface [ 54.511139] nat46: module (version 4c5beee236841724219598fabb1edc93d4f08ce5) loaded. [ 54.525044] gre: GRE over IPv4 demultiplexor driver [ 54.538149] ip_gre: GRE over IPv4 tunneling driver [ 54.558588] ip6_gre: GRE over IPv6 tunneling driver [ 54.648322] i2c /dev entries driver [ 54.662841] fuse: init (API version 7.31) [ 54.675880] usbcore: registered new interface driver cdc_wdm [ 54.682968] Loading modules backported from Linux version v5.15.92-0-ge515b9902f5f [ 54.690690] Backport generated by backports.git v5.15.92-1-0-gdfe0f60c [ 54.699216] usbcore: registered new interface driver cp210x [ 54.705678] usbserial: USB Serial support registered for cp210x [ 54.764605] l2tp_ppp: PPPoL2TP kernel driver, V2.0 [ 54.871146] libphy: GPIO Bitbanged MDIO: probed [ 55.034569] nf_conntrack_rtsp v0.7 loading [ 55.050102] nf_nat_rtsp v0.7 loading [ 55.055476] usbcore: registered new interface driver pl2303 [ 55.061246] usbserial: USB Serial support registered for pl2303 [ 55.068774] PPP MPPE Compression module registered [ 55.074639] PPTP driver version 0.8.5 [ 55.079589] usbcore: registered new interface driver sierra [ 55.085415] usbserial: USB Serial support registered for Sierra USB modem [ 55.100909] wireguard: WireGuard 1.0.20220627 loaded. See www.wireguard.com for information. [ 55.109453] wireguard: Copyright (C) 2015-2019 Jason A. Donenfeld <Jason@zx2c4.com>. All Rights Reserved. [ 55.132353] xt_time: kernel timezone is -0000 [ 55.137630] usbcore: registered new interface driver cdc_eem [ 55.144902] usbcore: registered new interface driver cdc_ether [ 55.152704] usbcore: registered new interface driver cdc_ncm [ 55.159209] usbcore: registered new interface driver cdc_subset [ 55.184919] usbcore: registered new interface driver huawei_cdc_ncm [ 55.226352] usbcore: registered new interface driver kalmia [ 55.274429] irq: no irq domain found for interrupt-controller ! [ 55.280604] woe_enable_chk:120 error!!! [ 55.284571] -->2) Error 2 opening /etc/woe_disable [ 55.289595] npu_enable_chk:164 error!!! [ 55.293542] npu npu_controller setting [ 55.293542] default open npu 2 opening /etc/npu_enable [ 55.302864] pci 0000:00:00.0: enabling device (0140 -> 0142) [ 55.308686] mt7915e 0000:01:00.0: enabling device (0140 -> 0142) [ 55.314995] mt7915_mmio_probe:1192 band=0 !!! [ 55.319428] call HOSTDAPT WIFI HOOK 2G [ 55.323507] hostdapt_registe_wifitask 0 [ 55.327412] init 2G tasklet ! [ 55.442521] whnat_driver_init:264 call hook sys up & hif init !!!!! [ 55.448929] whnat_cap_support:83 chip_id=30997 !!!!! [ 55.453985] whnat_cap_support(): chip_id=7915 is in WHNAT support list [ 55.460646] whnat_driver_init(): (efault) whnat is enable !!! [ 55.466488] wifi_slot_get(): bus name=PCI Bus 0000:01, funid=0, get slot id=0 [ 55.473777] whnat_entry_acquire:106 slot_id = 0 !!!!! [ 55.478966] whnat_entry_acquire(): PCIE SLOT:0, hook to WHNAT,entry id=0 [ 55.486878] wed_ring_init(): wed ring init result = 0 [ 55.509536] create wed ok!!! [ 55.512573] wdma_init(): wdma(0) base addr=e0afe000 [ 55.517537] wdma_init(): wdma(0) irq[0]=83 [ 55.521785] wdma_init(): wdma(0) irq[1]=84 [ 55.525965] wdma_init(): wdma(0) irq[2]=85 [ 55.530593] wifi_chip_probe(): Chang CHIP IRQ: 81 to WHNAT IRQ: 89 [ 55.539967] wifi_slot_get(): bus name=PCI Bus 0000:01, funid=0, get slot id=0 [ 55.547264] wifi_slot_get(): bus name=PCI Bus 0000:01, funid=0, get slot id=0 [ 55.554632] whnat_probe(): probe fail since whnat is full! [ 55.560273] whnat_dev0: probe of 1fa02000.wed2 failed with error -1 [ 55.567477] whnat_wed_ring_rx_update():614 index=0 val=95516000 !!! [ 55.573923] whnat_wed_ring_rx_update():614 index=4 val=200 !!! [ 55.579826] whnat_wed_ring_rx_update():614 index=8 val=1ff !!! [ 55.587342] wdma_dma_ctrl(): WDMA_GLO_CFG=40000450 [ 55.592240] =========whnat_hal_wdma_init :ECNT WED_WDMA_CFG_BASE = 1fa00000 [ 55.599422] whnat_hal_wdma_ring_init(): configure ring 0 setting [ 55.605528] whnat_hal_wdma_ring_init(): wed:b543388e,wdma:da496980: 100=0,104=1024,108=0 [ 55.613775] whnat_hal_wdma_ring_init(): configure ring 1 setting [ 55.619920] whnat_hal_wdma_ring_init(): wed:b543388e,wdma:da496980: 110=0,114=1024,118=0 [ 55.628101] whnat_hal_wpdma_ring_init(): configure ring 0 setting [ 55.634355] whnat_hal_wpdma_ring_init(): wed:b543388e wifi:19607ddd: d7300=96848000,d7304=2048,d7308=0 [ 55.643817] whnat_hal_wpdma_ring_init(): configure ring 1 setting [ 55.649986] whnat_hal_wpdma_ring_init(): wed:b543388e wifi:19607ddd: d7310=96850000,d7314=2048,d7318=0 [ 55.715113] mt7915e 0000:01:00.0: HW/SW Version: 0x8a108a10, Build Time: 20250409180459a [ 55.715113] [ 55.903998] mt7915e 0000:01:00.0: WM Firmware Version: ____000000, Build Time: 20250917151758 [ 55.931006] mt7915e 0000:01:00.0: WA Firmware Version: DEV_000000, Build Time: 20250311151233 [ 56.042319] mt7915_mcu_init_firmware:2440 dev_ver=1 recv_id=0 !!! [ 56.048961] chip_type_check:101 open error !!! [ 56.056544] band_calibrated:130 open error !!! [ 56.061136] bbsoc_load_eeprom_from_bin:247 use default !!! [ 56.066693] mt7915e 0000:01:00.0: bbsoc_load_eeprom_from_bin() file_path:/lib/firmware/mediatek/mt7915_eeprom_2g.bin [ 56.077389] mt7915e 0000:01:00.0: load eeprom succesfully from /lib/firmware/mediatek/mt7915_eeprom_2g.bin [ 56.087196] mt7915e 0000:01:00.0: mt7915_eeprom_load flash_mode [ 56.093254] mt7915e 0000:01:00.0: val:0x24 [ 56.097418] mt7915e 0000:01:00.0: e2p matched with mt7915a hw [ 56.111942] npuOffload on mt76 init [ 56.115677] the value of pdev->bus->self->devfn is 0 ,and the band_index is 0 [ 56.122965] DriverModel=0 [ 56.125833] Error: 7915A NPU_WIFI_OFFLOAD Set Dirver Model success [ 56.132309] Error: 7915A NPU_WIFI_OFFLOAD Set PCIE PORT success [ 56.138456] !!!! do phy and virtual address mapping [ 56.145007] the addr of NCounter2G_Base is e0b7e0e4 [ 56.150999] dramBaEntry_pa=94e00000 [ 56.154723] after :pci_resource_start= 20000000 [C0][NPU] npu_set_pcie_base, addr=200d4500, band_idx=0 [C0][npu_set_pcie_base] 2.4G pcieBase 200d4500 mem_base 200d4500, hw_rx_desc=0 [C0][NPU] npu_init... [C0]Chip id(4) support NPU Wifi ffload [C0][NPU] pkt_queue_init... [C0]counter_init:0 [C0][NPU] Enter(2.4G) npu_npu_init_rxd, band_idx=0, rx_ring_size=1536 [ 56.188354] WIFI_MAIL_API_GET_WAIT_RXDESC_BASE info=1e806020 [ 56.194410] irq: no irq domain found for interrupt-controller ! [ 56.200457] woe_enable_chk:120 error!!! [ 56.204497] -->2) Error 2 opening /etc/woe_disable [ 56.209379] npu_enable_chk:164 error!!! [ 56.213347] npu npu_controller setting [ 56.213347] default open npu 2 opening /etc/npu_enable [ 56.222685] pci 0000:00:01.0: enabling device (0140 -> 0142) [ 56.228526] mt7915e 0000:02:00.0: enabling device (0140 -> 0142) [ 56.234901] mt7915_mmio_probe:1192 band=1 !!! [ 56.239416] call HOSTDAPT WIFI HOOK 5G [ 56.243515] hostdapt_registe_wifitask 1 [ 56.247465] init 5G tasklet ! [ 56.371099] whnat_driver_init:264 call hook sys up & hif init !!!!! [ 56.377453] whnat_cap_support:83 chip_id=30997 !!!!! [ 56.382587] whnat_cap_support(): chip_id=7915 is in WHNAT support list [ 56.389186] whnat_driver_init(): (efault) whnat is enable !!! [ 56.395096] wifi_slot_get(): bus name=PCI Bus 0000:02, funid=8, get slot id=1 [ 56.402319] whnat_entry_acquire:106 slot_id = 1 !!!!! [ 56.407511] whnat_entry_acquire(): PCIE SLOT:1, hook to WHNAT,entry id=1 [ 56.415454] wed_ring_init(): wed ring init result = 0 [ 56.438073] create wed ok!!! [ 56.441121] wdma_init(): wdma(1) base addr=e1234400 [ 56.446089] wdma_init(): wdma(1) irq[0]=86 [ 56.450325] wdma_init(): wdma(1) irq[1]=87 [ 56.454522] wdma_init(): wdma(1) irq[2]=88 [ 56.459166] wifi_chip_probe(): Chang CHIP IRQ: 82 to WHNAT IRQ: 90 [ 56.465454] wifi_slot_get(): bus name=PCI Bus 0000:02, funid=8, get slot id=1 [ 56.472754] wifi_slot_get(): bus name=PCI Bus 0000:02, funid=8, get slot id=1 [ 56.480858] whnat_wed_ring_rx_update():614 index=0 val=93b7e000 !!! [ 56.487312] whnat_wed_ring_rx_update():614 index=4 val=200 !!! [ 56.493249] whnat_wed_ring_rx_update():614 index=8 val=1ff !!! [ 56.500700] wdma_dma_ctrl(): WDMA_GLO_CFG=40000450 [ 56.505598] =========whnat_hal_wdma_init :ECNT WED_WDMA_CFG_BASE = 1fa00000 [ 56.512801] whnat_hal_wdma_ring_init(): configure ring 0 setting [ 56.518882] whnat_hal_wdma_ring_init(): wed:59cc59a7,wdma:c523c452: 100=0,104=1024,108=0 [ 56.527120] whnat_hal_wdma_ring_init(): configure ring 1 setting [ 56.533289] whnat_hal_wdma_ring_init(): wed:59cc59a7,wdma:c523c452: 110=0,114=1024,118=0 [ 56.541475] whnat_hal_wpdma_ring_init(): configure ring 0 setting [ 56.547706] whnat_hal_wpdma_ring_init(): wed:59cc59a7 wifi:42104311: d7300=991f8000,d7304=2048,d7308=0 [ 56.557165] whnat_hal_wpdma_ring_init(): configure ring 1 setting [ 56.563355] whnat_hal_wpdma_ring_init(): wed:59cc59a7 wifi:42104311: d7310=952c0000,d7314=2048,d7318=0 [ 56.591613] mt7915e 0000:02:00.0: HW/SW Version: 0x8a108a10, Build Time: 20250409180459a [ 56.591613] [ 56.611220] mt7915e 0000:02:00.0: WM Firmware Version: ____000000, Build Time: 20250917151758 [ 56.638368] mt7915e 0000:02:00.0: WA Firmware Version: DEV_000000, Build Time: 20250311151233 [ 56.749669] mt7915_mcu_init_firmware:2440 dev_ver=1 recv_id=0 !!! [ 56.756269] chip_type_check:101 open error !!! [ 56.760794] band_calibrated:130 open error !!! [ 56.765400] bbsoc_load_eeprom_from_bin:227 use default !!! [ 56.770971] mt7915e 0000:02:00.0: bbsoc_load_eeprom_from_bin() file_path:/lib/firmware/mediatek/mt7915_eeprom.bin [ 56.781462] mt7915e 0000:02:00.0: load eeprom succesfully from /lib/firmware/mediatek/mt7915_eeprom.bin [ 56.790999] mt7915e 0000:02:00.0: mt7915_eeprom_load flash_mode [ 56.797077] mt7915e 0000:02:00.0: val:0x24 [ 56.801270] mt7915e 0000:02:00.0: e2p matched with mt7915a hw [ 56.810582] npuOffload on mt76 init [ 56.814377] the value of pdev->bus->self->devfn is 8 ,and the band_index is 1 [ 56.821671] DriverModel=0 [ 56.824555] Error: 7915A NPU_WIFI_OFFLOAD Set Dirver Model success [ 56.831015] Error: 7915A NPU_WIFI_OFFLOAD Set PCIE PORT success [ 56.837267] after :pci_resource_start= 20200000 [C0][NPU] npu_set_pcie_base, addr=202d4500, band_idx=1 [C0][npu_set_pcie_base] 5G pcieBase 202d4500 mem_base 202d4500, hw_rx_desc=0 [C0][NPU] npu_init... [C0]Chip id(4) support NPU Wifi ffload [C0][NPU] pkt_queue_init... [C0]counter_init:1 [C0][NPU] Enter npu_npu_init_rxd_5G, band_idx=1, rx_ring_size=1536 [ 56.870438] WIFI_MAIL_API_GET_WAIT_RXDESC_BASE info=1e800000 [ 56.886782] usbcore: registered new interface driver option [ 56.892588] usbserial: USB Serial support registered for GSM modem (1-port) [ 56.902008] usbcore: registered new interface driver qcserial [ 56.907963] usbserial: USB Serial support registered for Qualcomm USB modem [ 56.918158] usbcore: registered new interface driver qmi_wwan [ 56.930498] usbcore: registered new interface driver sierra_net [ 56.938165] usbcore: registered new interface driver cdc_mbim [ 56.944984] kmodloader: done loading kernel modules from /etc/modules.d/* [ 71.470865] ae wan mac driver init [ 71.474571] sgmii_api_pon0_force_hsgmii: inint [ 71.511358] sgmii_api_pon0_force_hsgmii: exit [ 71.641084] ae wan mac driver init OK [ 71.938883] xsi mac driver init [ 71.942345] sgmii_api_usb0_force_hsgmii: inint [ 71.946964] sgmii_api_usb0_force_hsgmii: exit [ 71.951595] xsi mac driver init OK [ 75.991838] /dev/ubiblock0_4: Can't open blockdev [ 76.880303] /dev/ubiblock0_4: Can't open blockdev [ 77.611572] /dev/ubiblock0_4: Can't open blockdev reset reason: POR_RESET - system upgraded - [ 84.767037] br-lan: port 1(eth1) entered blocking state [ 84.772577] br-lan: port 1(eth1) entered disabled state [ 84.778125] device eth1 entered promiscuous mode [ 84.802520] br-lan: port 2(eth0.1) entered blocking state [ 84.808110] br-lan: port 2(eth0.1) entered disabled state [ 84.813989] device eth0.1 entered promiscuous mode [ 84.828961] br-lan: port 3(eth0.2) entered blocking state [ 84.834508] br-lan: port 3(eth0.2) entered disabled state [ 84.840275] device eth0.2 entered promiscuous mode [ 84.859233] br-lan: port 4(eth0.3) entered blocking state [ 84.864866] br-lan: port 4(eth0.3) entered disabled state [ 84.876961] device eth0.3 entered promiscuous mode [ 87.553767] genlmsg_multicast() failed = -3 [ 87.559198] br-lan: port 4(eth0.3) entered blocking state [ 87.564753] br-lan: port 4(eth0.3) entered forwarding state [ 87.590090] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready [ 88.450017] /dev/ubiblock0_4: Can't open blockdev [ 92.571353] ifc_set_action: cpu:1, nbq:1 [ 92.575368] ifc_set_action: cpu:1, nbq:1 [ 92.579432] ifc_set_action: cpu:1, nbq:2 [ 92.583515] ifc_set_action: cpu:1, nbq:1 [ 92.587522] ifc_set_action: cpu:1, nbq:1 [ 92.591654] ifc_set_action: cpu:1, nbq:1 [ 92.595668] ifc_set_action: cpu:1, nbq:1 [ 92.599681] ifc_set_action: cpu:1, nbq:2 [ 92.603787] ifc_set_action: cpu:1, nbq:2 [ 92.607789] ifc_set_action: cpu:1, nbq:1 [ 92.611816] ifc_set_action: cpu:1, nbq:1 [ 92.615882] ifc_set_action: cpu:1, nbq:1 [ 92.619880] ifc_set_action: cpu:1, nbq:1 [ 92.623919] ifc_set_action: cpu:1, nbq:3 [ 92.627985] ifc_set_action: cpu:1, nbq:1 [ 92.632010] ifc_set_action: cpu:1, nbq:1 [ 92.636010] ifc_set_action: cpu:1, nbq:1 [ 92.640070] ifc_set_action: cpu:1, nbq:1 [ 92.644090] ifc_set_action: cpu:1, nbq:1 [ 92.648109] ifc_set_action: cpu:1, nbq:1 [ 92.652252] ifc_set_action: cpu:1, nbq:7 [ 92.656669] ifc_set_action: cpu:1, nbq:8 [ 96.766825] WARNING! power/level is deprecated; use power/control instead [ 97.946812] status: DSPCore[Ver:TVM1.0.17.0-37],IsHdVoice=0,VOIP_MAX_CHAN=16 [ 98.148896] [1] PCM V2.4 (Oct 24 2021 09:01:35) [ 98.198852] bind irq-113 to CPU1 [ 98.202191] PCM_INT=28 [ 98.204710] pcm[Ver:TVM1.0.17.0-37] [ 98.345371] lec[Ver:TVM1.0.17.0-37] [ 98.410052] SYS_HCLK=250 [ 98.412728] Major Num:233, device: spi [ 98.416656] spi[Ver:TVM1.0.17.0-37] [ 98.426446] [4294947137][spi][INFO][SPI_slic_check:L2654]set slic type: ===0=== [ 98.433951] [4294947138][spi][INFO][SPI_slic_check:L2655]set interface_type: ===1=== [ 98.442077] [4294947139][spi][INFO][SPI_slic_check:L2656]set slicid: ===0=== [ 98.449307] [4294947139][spi][INFO][set_gpio_clocksrc:L2362]set gpio clocksrc,interface:1,devNum:1,gpio:1000 [ 98.459306] [4294947140][spi][INFO][set_gpio_clocksrc:L2373]ZSI [ 98.465320] [4294947141][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512====== [ 98.473313] [4294947142][spi][INFO][SPI_Reset:L536] [ 98.473313] SPI_Reset 2 [ 98.591147] [4294947154][spi][INFO][SPI_slic_check:L2683]======spi check zarlink====== [ 98.599331] [4294947154][spi][INFO][SPI_slic_check:L2698]res_arr[0]:0xff [ 98.599331] res_arr[1]:0xff [ 98.609068] [4294947155][spi][INFO][SPI_slic_check:L2765][zarlink] unknown slic type!reset times:1 [ 98.618208] [4294947156][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512====== [ 98.626254] [4294947157][spi][INFO][SPI_Reset:L536] [ 98.626254] SPI_Reset 2 [ 98.751154] [4294947170][spi][INFO][SPI_slic_check:L2683]======spi check zarlink====== [ 98.759272] [4294947170][spi][INFO][SPI_slic_check:L2698]res_arr[0]:0xff [ 98.759272] res_arr[1]:0xff [ 98.769036] [4294947171][spi][INFO][SPI_slic_check:L2765][zarlink] unknown slic type!reset times:2 [ 98.778260] [4294947172][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512====== [ 98.786310] [4294947173][spi][INFO][SPI_Reset:L536] [ 98.786310] SPI_Reset 2 [ 98.887882] set meterID=0, rate=0, mode=0, portID=0x2 [ 98.893183] basicParameter = 0x0 [ 98.896481] rate_cfg: value = 0x80000001 [ 98.900471] tokenRate = 0x0 [ 98.903348] rate_cfg: value = 0x90000001 [ 98.907339] bucketSize_shift = 0x1 [ 98.910809] rate_cfg: value = 0xa0000001 [ 98.911086] [4294947186][spi][INFO][SPI_slic_check:L2683]======spi check zarlink====== [ 98.914808] port_id = 2, meter_id = 0 [ 98.922956] [4294947187][spi][INFO][SPI_slic_check:L2698]res_arr[0]:0xff [ 98.922956] res_arr[1]:0xff [ 98.926631] glb_cfg: value = 0xf0000002 [ 98.936275] [4294947188][spi][INFO][SPI_slic_check:L2765][zarlink] unknown slic type!reset times:3 [ 98.949291] [4294947189][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512====== [ 98.957326] [4294947190][spi][INFO][SPI_Reset:L536] [ 98.957326] SPI_Reset 2 [ 99.081139] [4294947203][spi][INFO][SPI_slic_check:L2683]======spi check zarlink====== [ 99.089307] [4294947203][spi][INFO][SPI_slic_check:L2698]res_arr[0]:0xff [ 99.089307] res_arr[1]:0xff [ 99.098972] [4294947204][spi][INFO][SPI_slic_check:L2765][zarlink] unknown slic type!reset times:4 [ 99.108109] [4294947205][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512====== [ 99.116116] [4294947206][spi][INFO][SPI_Reset:L536] [ 99.116116] SPI_Reset 2 [ 99.251275] [4294947220][spi][INFO][SPI_slic_check:L2683]======spi check zarlink====== [ 99.259400] [4294947220][spi][INFO][SPI_slic_check:L2698]res_arr[0]:0xff [ 99.259400] res_arr[1]:0xff [ 99.272285] [4294947222][spi][INFO][SPI_slic_check:L2765][zarlink] unknown slic type!reset times:5 [ 99.281431] param.data: [ 99.284184] [4294947223][spi][INFO][SPI_slic_check:L2654]set slic type: ===1=== [ 99.291699] [4294947224][spi][INFO][SPI_slic_check:L2655]set interface_type: ===2=== [ 99.299536] [4294947224][spi][INFO][SPI_slic_check:L2656]set slicid: ===0=== [ 99.306848] [4294947225][spi][INFO][set_gpio_clocksrc:L2362]set gpio clocksrc,interface:2,devNum:1,gpio:1000 [ 99.316913] [4294947226][spi][INFO][set_gpio_clocksrc:L2365]ISI [ 99.322984] [4294947227][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512====== [ 99.330975] [4294947227][spi][INFO][SPI_Reset:L536] [ 99.330975] SPI_Reset 2 [ 99.451157] [4294947240][spi][INFO][SPI_slic_check:L2777]======spi check silicon====== [ 99.459199] [4294947240][spi][INFO][SPI_slic_check:L2790]retVal:0, Part_num 0x0, Revision 0x0 [ 99.467890] [4294947241][spi][ERR][SPI_slic_check:L2886][silicon] unknown slic type!reset times:1 [ 99.476920] [4294947242][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512====== [ 99.484910] [4294947243][spi][INFO][SPI_Reset:L536] [ 99.484910] SPI_Reset 2 [ 99.621136] [4294947257][spi][INFO][SPI_slic_check:L2777]======spi check silicon====== [ 99.629220] [4294947257][spi][INFO][SPI_slic_check:L2790]retVal:0, Part_num 0x0, Revision 0x0 [ 99.637911] [4294947258][spi][ERR][SPI_slic_check:L2886][silicon] unknown slic type!reset times:2 [ 99.646928] [4294947259][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512====== [ 99.654829] [4294947260][spi][INFO][SPI_Reset:L536] [ 99.654829] SPI_Reset 2 [ 99.781146] [4294947273][spi][INFO][SPI_slic_check:L2777]======spi check silicon====== [ 99.789269] [4294947273][spi][INFO][SPI_slic_check:L2790]retVal:0, Part_num 0x0, Revision 0x0 [ 99.797934] [4294947274][spi][ERR][SPI_slic_check:L2886][silicon] unknown slic type!reset times:3 [ 99.807019] [4294947275][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512====== [ 99.815042] [4294947276][spi][INFO][SPI_Reset:L536] [ 99.815042] SPI_Reset 2 [ 99.887907] qos_wrr_info: 0 0 0 0 0 [ 99.891505] QDMA QoS: HW SP [ 99.943387] [4294947289][spi][INFO][SPI_slic_check:L2777]======spi check silicon====== [ 99.951536] [4294947290][spi][INFO][SPI_slic_check:L2790]retVal:0, Part_num 0x0, Revision 0x0 [ 99.960206] [4294947290][spi][ERR][SPI_slic_check:L2886][silicon] unknown slic type!reset times:4 [ 99.969229] [4294947291][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512====== [ 99.977231] [4294947292][spi][INFO][SPI_Reset:L536] [ 99.977231] SPI_Reset 2 [ 100.101091] [4294947305][spi][INFO][SPI_slic_check:L2777]======spi check silicon====== [ 100.109115] [4294947305][spi][INFO][SPI_slic_check:L2790]retVal:0, Part_num 0x0, Revision 0x0 [ 100.117807] [4294947306][spi][ERR][SPI_slic_check:L2886][silicon] unknown slic type!reset times:5 [ 100.127115] param.data: [ 100.129718] [4294947307][spi][INFO][SPI_slic_check:L2654]set slic type: ===2=== [ 100.137188] [4294947308][spi][INFO][SPI_slic_check:L2655]set interface_type: ===3=== [ 100.145032] [4294947309][spi][INFO][SPI_slic_check:L2656]set slicid: ===0=== [ 100.152232] [4294947310][spi][INFO][set_gpio_clocksrc:L2362]set gpio clocksrc,interface:3,devNum:1,gpio:1000 [ 100.162220] [4294947311][spi][INFO][set_gpio_clocksrc:L2381]CSI [ 100.168272] [4294947311][spi][INFO][SPI_slic_check:L2895]======spi check lantiq====== [ 100.176203] [4294947312][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512====== [ 100.184188] [4294947313][spi][INFO][SPI_Reset:L536] [ 100.184188] SPI_Reset 2 [ 100.311534] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.317033] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.322532] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.328082] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.333600] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.339159] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.347689] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.353279] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.358764] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.364350] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.369841] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.375434] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.380928] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.386492] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.392003] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.397484] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.403039] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.408531] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.414096] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.419581] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.425150] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.430641] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.436212] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.441716] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.447260] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.452750] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.458298] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.463800] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.469286] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.474869] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.480363] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.485929] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.491437] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.496984] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.502481] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.508027] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.513544] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.519108] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.524690] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.530287] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.535830] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.541381] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.547044] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.552634] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.558215] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.563812] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.569399] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.574951] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.580512] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.586068] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.591713] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.597230] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.602883] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.608387] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.613975] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.619554] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.625112] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.630741] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.636302] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.641904] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.647426] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.653035] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.658567] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.664182] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.669692] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.675332] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.680854] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.686414] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.692031] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.697575] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.703205] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.708705] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.714302] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.719807] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.725424] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.730927] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.736571] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.742123] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.747781] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.753342] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.758868] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.764493] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.770004] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.775626] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.781154] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.786732] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.792282] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.797876] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.803474] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.809058] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.814629] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.820163] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.825746] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.831297] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.836881] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.842432] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.848025] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.853614] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.859260] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.864832] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.870420] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 100.875805] [4294947382][spi][INFO][lantiq_slic_verify_device:L2634][lantiq] unknown slic type!reset times:1 [ 100.885918] [4294947383][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512====== [ 100.893950] [4294947384][spi][INFO][SPI_Reset:L536] [ 100.893950] SPI_Reset 2 [ 101.021666] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.027242] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.032785] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.038342] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.043852] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.049410] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.054912] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.060459] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.065961] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.071465] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.077007] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.082518] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.088074] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.093578] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.099133] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.104635] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.110190] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.115692] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.121267] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.126756] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.132316] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.137801] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.143307] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.148861] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.154365] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.159921] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.168455] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.174029] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.179521] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.185101] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.190590] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.196154] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.201663] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.207209] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.212756] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.218243] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.223826] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.229321] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.234889] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.240379] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.245949] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.251456] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.256999] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.262512] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.268063] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.273572] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.279122] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.284632] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.290119] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.295686] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.301197] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.306750] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.312249] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.317804] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.323304] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.328854] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.334355] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.339903] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.345409] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.350964] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.356464] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.361970] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.367523] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.373020] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.378577] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.384088] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.389642] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.395148] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.400702] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.406204] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.411771] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.417258] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.425838] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.431357] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.436847] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.442632] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.448136] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.453731] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.459226] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.464794] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.470285] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.475857] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.481364] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.486917] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.492419] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.497967] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.503466] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.508955] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.514539] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.520034] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.525599] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.531100] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.536645] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.542147] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.547699] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.553198] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.558749] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.564251] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.569736] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.575242] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.580726] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.586118] [4294947453][spi][INFO][lantiq_slic_verify_device:L2634][lantiq] unknown slic type!reset times:2 [ 101.596107] [4294947454][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512====== [ 101.604015] [4294947455][spi][INFO][SPI_Reset:L536] [ 101.604015] SPI_Reset 2 [ 101.731537] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.737105] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.742628] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.748109] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.753671] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.759151] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.764696] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.770175] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.775724] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.781208] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.786769] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.792276] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.797826] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.803321] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.808872] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.814373] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.819859] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.825425] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.830918] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.836495] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.842007] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.847557] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.853056] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.858610] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.864114] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.869671] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.875178] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.880729] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.886235] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.891743] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.897295] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.902793] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.908341] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.913842] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.919392] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.924926] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.930478] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.936168] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.941782] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.947269] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.952830] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.958322] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.963825] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.969392] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.974903] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.980449] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.985953] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.991527] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 101.997019] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.002582] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.008069] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.013657] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.019149] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.024721] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.030210] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.035730] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.041301] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.046789] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.052344] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.057836] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.063404] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.068894] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.074461] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.079954] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.085520] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.091013] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.096581] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.102092] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.107580] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.113133] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.118617] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.124184] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.129674] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.135243] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.140734] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.146303] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.151810] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.157357] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.162854] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.168403] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.173901] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.179389] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.184955] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.190447] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.196014] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.201519] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.207069] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.212569] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.218124] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.223624] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.229177] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.234673] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.240224] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.245723] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.251226] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.256781] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.262296] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.267850] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.273362] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.278911] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.284404] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.289777] [4294947523][spi][INFO][lantiq_slic_verify_device:L2634][lantiq] unknown slic type!reset times:3 [ 102.299759] [4294947524][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512====== [ 102.307693] [4294947525][spi][INFO][SPI_Reset:L536] [ 102.307693] SPI_Reset 2 [ 102.431533] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.437035] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.442616] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.448107] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.453679] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.459172] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.464743] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.470232] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.475799] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.481598] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.487091] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.492662] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.498149] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.503716] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.509224] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.514801] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.520294] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.525859] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.531369] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.536915] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.542412] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.547959] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.553462] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.558947] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.564512] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.570005] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.575572] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.581071] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.586626] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.592132] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.597683] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.603182] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.608732] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.614236] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.619789] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.625292] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.630780] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.636344] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.641853] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.647401] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.652896] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.658443] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.663948] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.669496] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.674996] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.680546] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.686046] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.691612] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.697095] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.702584] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.708132] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.713639] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.719191] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.724696] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.730250] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.735752] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.741320] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.746809] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.752361] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.757853] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.763417] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.768904] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.774413] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.779964] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.785463] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.791013] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.796515] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.802082] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.807572] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.813130] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.818616] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.824231] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.829734] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.835328] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.840824] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.846373] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.851999] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.857508] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.863126] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.868638] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.874300] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.879809] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.885461] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.890964] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.896586] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.902135] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.907706] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.913295] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.918805] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.924473] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.929975] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.935622] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.941158] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.946758] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.952316] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.957907] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.963465] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.969028] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.974600] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.980172] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.985722] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 102.991051] [4294947593][spi][INFO][lantiq_slic_verify_device:L2634][lantiq] unknown slic type!reset times:4 [ 103.001059] [4294947594][spi][INFO][SLIC_Reset_Infc:L2334]======slic reset 7512====== [ 103.009083] [4294947595][spi][INFO][SPI_Reset:L536] [ 103.009083] SPI_Reset 2 [ 103.131614] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.137150] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.143018] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.148545] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.154109] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.159672] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.165185] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.170737] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.176238] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.181804] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.187285] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.192836] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.198323] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.203889] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.209382] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.214946] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.220430] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.225940] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.231508] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.236989] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.242545] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.248034] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.253601] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.259086] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.264660] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.270144] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.275711] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.281210] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.286761] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.292262] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.297751] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.303316] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.308808] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.314373] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.319858] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.325427] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.330918] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.336483] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.341994] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.347540] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.353036] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.358584] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.364095] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.369594] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.375218] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.380730] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.386345] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.391861] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.397485] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.403028] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.408596] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.414109] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.419660] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.425167] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.430720] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.436221] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.441724] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.447271] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.452767] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.458313] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.463815] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.469366] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.474866] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.480415] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.485916] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.491482] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.496963] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.502517] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.508001] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.513505] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.519063] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.524568] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.530122] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.535626] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.541196] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.546690] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.552255] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.557740] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.563309] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.568801] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.574365] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.579858] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.585360] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.590912] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.596411] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.601979] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.607467] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.613018] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.618504] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.624073] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.629565] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.635129] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.640614] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.646179] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.651688] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.657171] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.662724] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.668209] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.673775] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.679268] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.684834] Read 18 DATA:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff: [ 103.690149] [4294947663][spi][INFO][lantiq_slic_verify_device:L2634][lantiq] unknown slic type!reset times:5 [ 103.700130] param.data: [ 103.709117] [spi_ctrl] exit [ 103.800856] PCM1 and SLIC Controller Module has been unloaded [ 111.216591] uledd: v1.0.1 started. Enforcing UCI values, no boot marker found. All init.d scripts started. Please press Enter to activate this console. ``` </details>
merbanan commented 2026-01-11 13:52:02 +00:00
Owner
Copy Link
Copy Source

This log is from a fairly new sdk. Both wed and npu is active in the driver.

This log is from a fairly new sdk. Both wed and npu is active in the driver.
Sirherobrine23 commented 2026-01-11 13:57:46 +00:00
Author
Owner
Copy Link
Copy Source

I will separate the WED from the Ethernet PR and see what is crashing the system after the NPU core 3 starts up

I will separate the WED from the Ethernet PR and see what is crashing the system after the NPU core 3 starts up
Sirherobrine23 commented 2026-01-14 19:31:44 +00:00
Author
Owner
Copy Link
Copy Source

i found this code to wed and wdma in xx530v v2:

i found this code to wed and wdma in xx530v v2: - https://sirherobrine23.com.br/tplink_gpl/tplink-xx530v_v2/src/commit/343249db3372d677fb37a7365a3c2794f303ba51/sdk/an7551/openwrt-wifi/package_Eagle_logan/feeds/wifi_package/mtk/drivers/mt_wifi7/src/mt_wifi/os/linux/plug_in/whnat - https://sirherobrine23.com.br/tplink_gpl/tplink-xx530v_v2/src/commit/343249db3372d677fb37a7365a3c2794f303ba51/sdk/an7551/openwrt-wifi/package_Kite_logan/feeds/wifi_package/mtk/drivers/mt_wifi7/src/warp_driver/warp
merbanan commented 2026-01-14 19:39:37 +00:00
Owner
Copy Link
Copy Source

https://sirherobrine23.com.br/tplink_gpl/tplink-xx530v_v2/src/branch/main/sdk/an7551/openwrt-wifi/package_mt76_7915_7916_mp2/package/kernel/mt76/patches

There are what I think are the mt76 patches.

https://sirherobrine23.com.br/tplink_gpl/tplink-xx530v_v2/src/branch/main/sdk/an7551/openwrt-wifi/package_mt76_7915_7916_mp2/package/kernel/mt76/patches There are what I think are the mt76 patches.
Sirherobrine23 commented 2026-01-14 19:44:00 +00:00
Author
Owner
Copy Link
Copy Source

There are some files similar to what we have from iow, and some function signatures are similar to what we have in mt_whnat as a module

There are some files similar to what we have from iow, and some function signatures are similar to what we have in mt_whnat as a module
Sirherobrine23 commented 2026-01-14 21:44:18 +00:00
Author
Owner
Copy Link
Copy Source

patches in code

patches in code - [iow](https://sirherobrine23.com.br/airoha_en7523/mt76/compare/7fae1de12ae7832a6095fd2df198f41fabd5223d...en7523-wifi-feed) - [xx530v v2 ](https://sirherobrine23.com.br/airoha_en7523/mt76/compare/7fae1de12ae7832a6095fd2df198f41fabd5223d...tplink_xx530v_v2#diff-836efb6e25a091dcb4ff8e1dbb2f0be6a5cbf14c)
Sirherobrine23 moved this to To Do in EN7523 on 2026-01-24 11:09:12 +00:00
Sign in to join this conversation.
No Branch/Tag Specified
Branches Tags
Labels
Clear labels
Compat/Breaking
Breaking change that won't be backward compatible
 Kind/Bug
Something is not working
 Kind/Documentation
Documentation changes
 Kind/Enhancement
Improve existing functionality
 Kind/Feature
New functionality
 Kind/Security
This is security issue
 Kind/Testing
Issue or pull request related to testing
Priority
Critical
1
The priority is critical
Priority
High
2
The priority is high
Priority
Low
4
The priority is low
Priority
Medium
3
The priority is medium
Reviewed
Confirmed
1
Issue has been confirmed
Reviewed
Duplicate
2
This issue or pull request already exists
Reviewed
Invalid
3
Invalid issue
Reviewed
Won't Fix
3
This issue won't be fixed
Status
Abandoned
3
Somebody has started to work on this but abandoned work
Status
Blocked
1
Something is blocking this issue or pull request
Status
Need More Info
2
Feedback is required to reproduce issue or to continue work
No labels Kind/Documentation Kind/Enhancement
Priority
Medium
3
Milestone
No items
No Milestone Ethernet
Assignees
Clear assignees
Gemnon (Csaba) Guilherme-Bember-Duarte (Guilherme Bember Duarte) kvn193 (Kevin Garcia) lilmayofuksu (ayy lmao) merbanan (Benjamin Larsson) mkshevetskiy (Mikhail Kshevetskiy) raphaelgz (Raphael Gozzo) Rondom (Andreas Gnau) Sirherobrine23 (Matheus Sampaio Queiroga)
No Assignees
2 Participants
Notifications
Due Date
No due date set.
Depends on
#2 Ethernet
airoha_en7523/kernel
Reference: airoha_en7523/kernel#3
